Festo
8059012

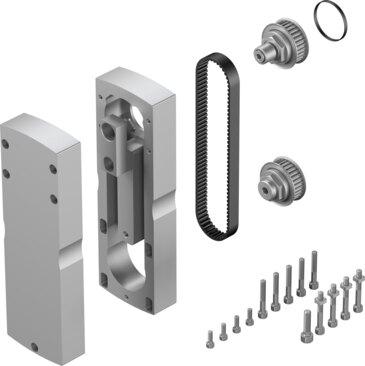

Parallel kit EAMM-U-86-S48-60PA-177
The Festo industrial component, part number 8059012, is size 86 with an actuator interface code S48 and a motor-in interface code 60PA, featuring a product weight of 3300 g and a mass moment of inertia of 175 kgmm². This unit operates at a maximum rotational speed of 5000 rpm, a no-load driving torque of 0.25 Nm, and a transferable torque of 9.5 Nm in any mounting position while meeting VDMA24364-B2-L LABS conformity and RoHS material directives. Rated to IP40 protection, it functions within an ambient temperature range of -10 °C to 60 °C, a storage temperature range of -25 °C to 60 °C, and a relative air humidity of 0 to 95%. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8059012
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8059012.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 86
- Mounting position
- Any
- Max. rotational speed
- 5000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 175 kgmm²
- No-load driving torque
- 0.25 Nm
- Transferable torque
- 9.5 Nm
- Product weight
- 3300 g
- Interface code, actuator
- S48
- Interface code, motor in
- 60PA
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8059012. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
