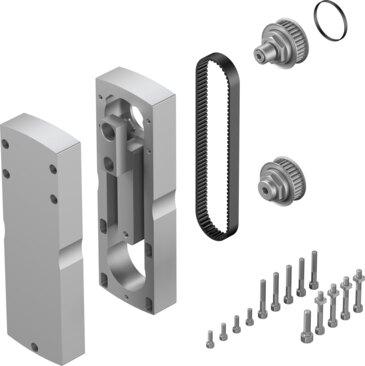

Reference imageConfirm configuration by manufacturer part number.
Festo
8059017
Parallel kit EAMM-U-86-S48-70AA-177
The Festo part number 8059017 is an industrial component featuring size 86 dimensions, a 1:1 gear ratio, and a transferable torque of 9.5 Nm with a no-load driving torque of 0.25 Nm. Weighing 3170 g with a mass moment of inertia of 175 kgmm², this unit supports any mounting position and achieves a maximum rotational speed of 5000 rpm. It includes actuator interface code S48, motor input interface codes 70AA and 70AB, IP40 protection, and RoHS-compliant materials conforming to VDMA24364 Zone III LABS requirements. Submit the exact part number, quantity, and application requirements for a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8059017
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8059017.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 86
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 5000 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 175 kgmm²
- No-load driving torque
- 0.25 Nm
- Transferable torque
- 9.5 Nm
- Product weight
- 3170 g
- Interface code, actuator
- S48
- Interface code, motor in
- 70AA | 70AB
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8059017. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
