Festo
8059038

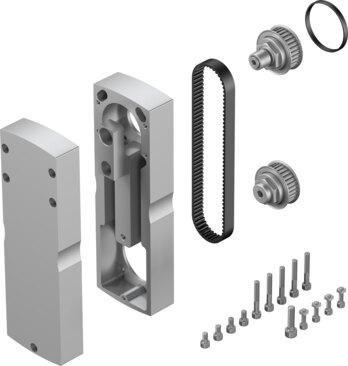

Parallel kit EAMM-U-86-S62-82AA-177
The Festo industrial component, part number 8059038, features a size 86 designation with an S62 actuator interface code and an 82AA motor input interface code. Weighing 3300 g with a mass moment of inertia of 175 kgmm², this unit delivers a transferable torque of 9.5 Nm alongside a no-load driving torque of 0.25 Nm and a maximum rotational speed of 5000 rpm. It operates within an ambient temperature range of -10 °C to 60 °C, withstands storage temperatures from -25 °C to 60 °C, supports relative air humidity between 0 and 95%, maintains an IP40 degree of protection, and conforms to VDMA24364-B2-L LABS (PWIS) standards with RoHS-compliant materials in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8059038
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8059038.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 86
- Mounting position
- Any
- Max. rotational speed
- 5000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 175 kgmm²
- No-load driving torque
- 0.25 Nm
- Transferable torque
- 9.5 Nm
- Product weight
- 3300 g
- Interface code, actuator
- S62
- Interface code, motor in
- 82AA
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8059038. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
