Festo
8059046

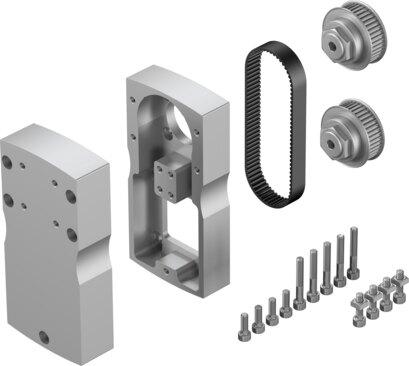

Parallel kit EAMM-U-110-D60-120GA-120
The Festo industrial component, part number 8059046, features a size 110 design with an actuator interface code of D60 and a motor input interface code of 120GA. Weighing 5250 g with a mass moment of inertia of 799 kgmm², this unit supports any mounting position and reaches a maximum rotational speed of 5000 rpm, delivering a no-load driving torque of 0.3 Nm and a transferable torque of 9.5 Nm. Operating within an ambient temperature range of -10 °C to 60 °C, relative air humidity up to 95%, and an IP40 degree of protection, the RoHS-compliant assembly conforms to VDMA24364-B2-L LABS (PWIS) standards and accommodates storage temperatures between -25 °C and 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8059046
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8059046.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 110
- Mounting position
- Any
- Max. rotational speed
- 5000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 799 kgmm²
- No-load driving torque
- 0.3 Nm
- Transferable torque
- 9.5 Nm
- Product weight
- 5250 g
- Interface code, actuator
- D60
- Interface code, motor in
- 120GA
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8059046. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
