Festo
8059048

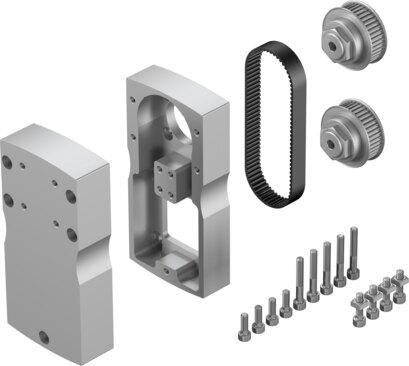

Parallel kit EAMM-U-110-D80-84AA-120
The Festo industrial component, part number 8059048, is an industrial component featuring a size of 110, an actuator interface code of D80, and a motor input interface code of 84AA. This unit delivers a transferable torque of 9.5 Nm, a no-load driving torque of 0.3 Nm, a mass moment of inertia of 799 kgmm², and a maximum rotational speed of 5000 rpm, with a total product weight of 5250 g. Operating within an ambient temperature range of -10 °C to 60 °C, a storage temperature range of -25 °C to 60 °C, and 0 to 95% relative air humidity, it provides IP40 protection, any mounting position, VDMA24364-B2-L LABS conformity, and RoHS compliant materials. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8059048
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8059048.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 110
- Mounting position
- Any
- Max. rotational speed
- 5000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 799 kgmm²
- No-load driving torque
- 0.3 Nm
- Transferable torque
- 9.5 Nm
- Product weight
- 5250 g
- Interface code, actuator
- D80
- Interface code, motor in
- 84AA
- Note on materials
- RoHS compliant
