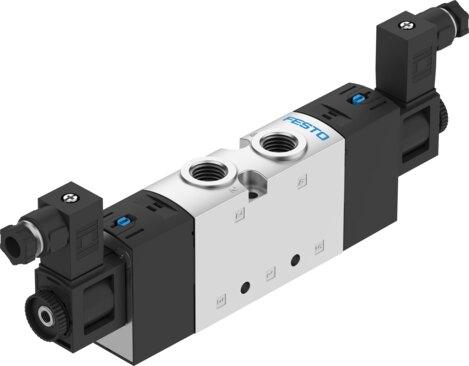

Name: Festo 8059143 Air solenoid valve VUVS-L25-B52-D-G14-F8-1C1+G
Brand: Festo

Air solenoid valve VUVS-L25-B52-D-G14-F8-1C1+G

The Festo 8059143 is an electrical 5/2-way bistable piston gate valve featuring a 26.5 mm valve size, a 6.9 mm nominal width, and a normalized nominal flow rate of 1300 l/min according to DIN 1343. This piloted component operates on 24V DC within an operating pressure range of 0.15 MPa to 1 MPa (1.5 bar to 10 bar), utilizing internal pilot air supply, a soft sealing principle, and G1/4 pneumatic working ports with adjustable exhaust air function. Featuring c UL us recognition and IP65 protection with a plug socket, it includes detenting and non-detenting manual override, positive overlap lap, a b-value of 0.4, and non-reversible flow direction for any mounting position. Submit the exact part number, quantity, and application requirements to receive a quote for this industrial component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8059143
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8059143.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, bistable
Actuation type: Electrical
Valve size: 26.5 mm
Normal nominal ow rate (normalized to DIN 1343): 1300 l/min
Pneumatic working port: G1/4
Operating voltage: 24V DC
Operating pressure: 0.15 MPa...1 MPa | 1.5 bar...10 bar
Structural design: Piston gate valve
Certication: c UL us - recognized (OL)
Degree of protection: IP65 | With plug socket | As per IEC 60529
Nominal width: 6.9 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Manual override: Detenting | Non-detenting
Type of control: Piloted
Pilot air supply port: Internal
Flow direction: Non-reversible
Lap: Positive overlap
b-value: 0.4
C value: 5.6 l/sbar
Changeover time: 11 ms
Duty cycle: 100%
Max. positive test pulse with 0 signal: 2000 µs
Max. negative test pulse on 1 signal: 3600 µs
Coil characteristics: 24 V DC: 3.3 W
Permissible voltage uctuations: +/- 10%
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8059143. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
