Name: Festo 8059257 Quick coupling plug NPHS-S6-M-G18
Brand: Festo

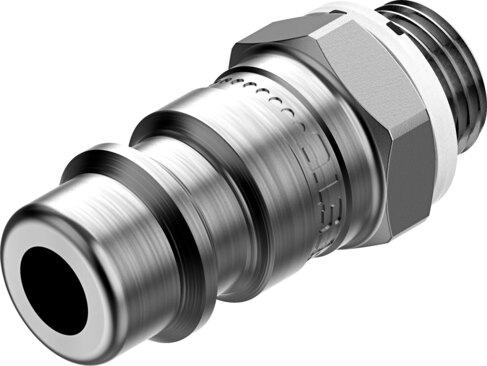

Quick coupling plug NPHS-S6-M-G18

The Festo part number 8059257 is an industrial component featuring a 5.5 mm nominal width and an external thread G1/8 pneumatic connection 1, operating across a pressure range of -0.95 bar to 12 bar and a temperature range of -10 °C to 60 °C. Constructed with galvanized steel, a PA66-GF30 and TPE-U threaded seal, and weighing 19 g, it delivers a normal nominal flow rate of 875 l/min to 1238 l/min with compressed air as per ISO 8573-1:2010 [7:-:-]. This RoHS-compliant part exhibits a corrosion resistance class of 1 and requires a nominal tightening torque of 3.5 Nm with a ±10% tolerance. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8059257
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8059257.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal width: 5.5 mm
Operating pressure for entire temperature range: -0.095 MPa...1.2 MPa | -0.95 bar...12 bar | -13.775 psi...174 psi
Normal nominal ow rate (normalized to DIN 1343): 875 l/min...1238 l/min
Nominal ow rate standardized according to ISO 8778: 948.5 l/min...1342 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Lubricated operation possible
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -10 °C...60 °C
Nominal tightening torque: 3.5 Nm
Tolerance for nominal tightening torque: ±10%
Product weight: 19 g
Pneumatic connection 1: External thread G1/8
Note on materials: RoHS compliant
Material of threaded seal: PA66-GF30 / TPE-U
Information on materials: Galvanized steel

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8059257. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
