Festo
8059258

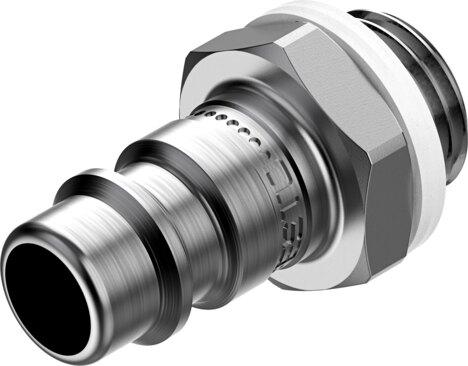

Quick coupling plug NPHS-S6-M-G14
The Festo industrial component, part number 8059258, features a 7.85 mm nominal width and an external thread G1/4 pneumatic connection 1 constructed from galvanized steel with a PA66-GF30 and TPE-U threaded seal. This part operates within a pressure range of -0.095 MPa to 1.2 MPa and an ambient temperature range of -10 °C to 60 °C, delivering a normal nominal flow rate between 1038 l/min and 2100 l/min for compressed air as per ISO 8573-1:2010 [7:-:-]. Designed with a corrosion resistance class of 1, a product weight of 20 g, and a nominal tightening torque of 11 Nm with a ±10% tolerance, it supports lubricated operation and complies with RoHS and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8059258
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8059258.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 7.85 mm
- Operating pressure for entire temperature range
- -0.095 MPa...1.2 MPa | -0.95 bar...12 bar | -13.775 psi...174 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 1038 l/min...2100 l/min
- Nominal ow rate standardized according to ISO 8778
- 1125.2 l/min...2276.4 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Nominal tightening torque
- 11 Nm
- Tolerance for nominal tightening torque
- ±10%
- Product weight
- 20 g
- Pneumatic connection 1
- External thread G1/4
- Note on materials
- RoHS compliant
- Material of threaded seal
- PA66-GF30 / TPE-U
- Information on materials
- Galvanized steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8059258. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
