Festo
8059259

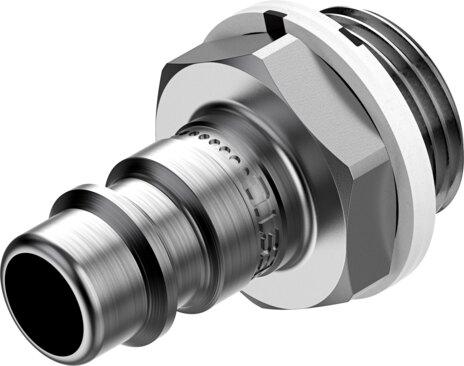

Quick coupling plug NPHS-S6-M-G38
The Festo part number 8059259 is an industrial component featuring a 7.85 mm nominal width, an external thread G3/8 pneumatic connection 1, and a product weight of 27 g. It operates within a pressure range of -0.095 MPa to 1.2 MPa and an ambient temperature range of -10 °C to 60 °C using compressed air as per ISO 8573-1:2010 [7:-:-]. This RoHS compliant unit is constructed with galvanized steel, a PA66-GF30 and TPE-U threaded seal, and achieves a normal nominal flow rate from 1038 l/min to 2050 l/min with a nominal tightening torque of 12.5 Nm at a ±20% tolerance. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8059259
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8059259.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 7.85 mm
- Operating pressure for entire temperature range
- -0.095 MPa...1.2 MPa | -0.95 bar...12 bar | -13.775 psi...174 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 1038 l/min...2050 l/min
- Nominal ow rate standardized according to ISO 8778
- 1125.2 l/min...2222.2 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Nominal tightening torque
- 12.5 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 27 g
- Pneumatic connection 1
- External thread G3/8
- Note on materials
- RoHS compliant
- Material of threaded seal
- PA66-GF30 / TPE-U
- Information on materials
- Galvanized steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8059259. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
