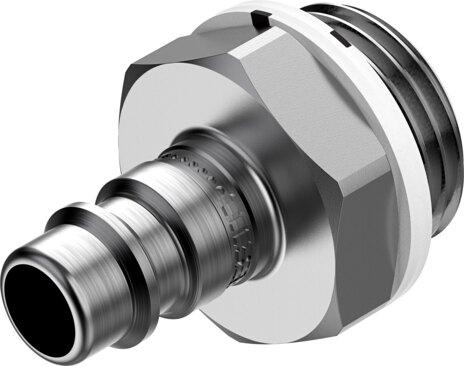

Name: Festo 8059260 Quick coupling plug NPHS-S6-M-G12
Brand: Festo

Quick coupling plug NPHS-S6-M-G12

The Festo industrial component, part number 8059260, features a 7.85 mm nominal width and an external thread G1/2 pneumatic connection 1 constructed from galvanized steel with a PA66-GF30 and TPE-U threaded seal. This RoHS-compliant part supports an operating pressure range of -0.95 bar to 12 bar and a normal nominal flow rate between 1002 l/min and 2000 l/min utilizing compressed air as per ISO 8573-1:2010 [7:-:-] within an ambient temperature of -10 °C to 60 °C. Weighing 50 g, it requires a nominal tightening torque of 14 Nm with a ±20% tolerance, holds a CRC corrosion resistance class of 1, and conforms to VDMA24364-B1/B2-L LABS standards while permitting lubricated operation. Submit part number 8059260, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8059260
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8059260.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal width: 7.85 mm
Operating pressure for entire temperature range: -0.095 MPa...1.2 MPa | -0.95 bar...12 bar | -13.775 psi...174 psi
Normal nominal ow rate (normalized to DIN 1343): 1002 l/min...2000 l/min
Nominal ow rate standardized according to ISO 8778: 1086.2 l/min...2168 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Lubricated operation possible
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -10 °C...60 °C
Nominal tightening torque: 14 Nm
Tolerance for nominal tightening torque: ±20%
Product weight: 50 g
Pneumatic connection 1: External thread G1/2
Note on materials: RoHS compliant
Material of threaded seal: PA66-GF30 / TPE-U
Information on materials: Galvanized steel

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8059260. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
