Festo
8059262

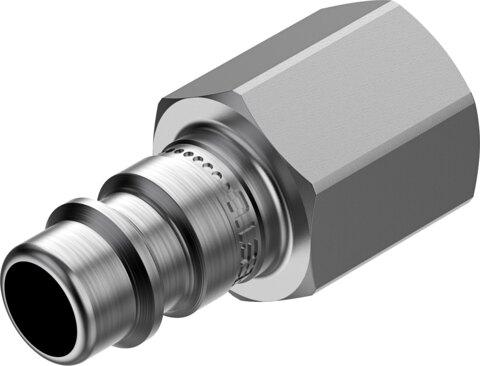

Quick coupling plug NPHS-S6-M-G14F
The Festo part number 8059262 is an industrial component featuring a nominal width of 7.85 mm, an internal thread G1/4 pneumatic connection 1, and a product weight of 28 g constructed from galvanized steel with RoHS compliance. It operates within a pressure range of -0.095 MPa to 1.2 MPa (-0.95 bar to 12 bar / -13.775 psi to 174 psi) and an ambient temperature range of -10 °C to 60 °C using compressed air as per ISO 8573-1:2010 [7:-:-], supporting lubricated operation and providing a normal nominal flow rate of 1002 l/min to 1950 l/min normalized to DIN 1343 alongside an ISO 8778 standardized flow rate of 1086.2 l/min to 2113.8 l/min. This unit exhibits a corrosion resistance class (CRC) of 1 for low corrosion stress and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8059262
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8059262.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 7.85 mm
- Operating pressure for entire temperature range
- -0.095 MPa...1.2 MPa | -0.95 bar...12 bar | -13.775 psi...174 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 1002 l/min...1950 l/min
- Nominal ow rate standardized according to ISO 8778
- 1086.2 l/min...2113.8 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 28 g
- Pneumatic connection 1
- Internal thread G1/4
- Note on materials
- RoHS compliant
- Information on materials
- Galvanized steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8059262. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
