Name: Festo 8059263 Quick coupling plug NPHS-S6-M-G38F
Brand: Festo

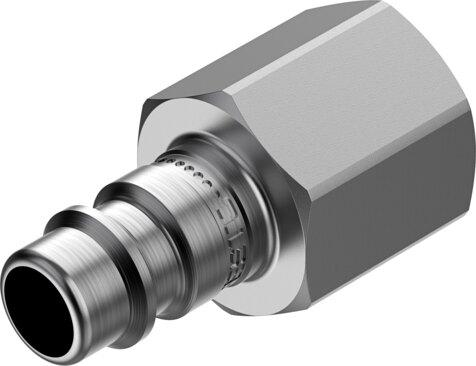

Quick coupling plug NPHS-S6-M-G38F

The Festo part number 8059263 is an industrial component featuring a nominal width of 7.85 mm, a G3/8 internal thread pneumatic connection 1, and a product weight of 29 g constructed from galvanized steel with RoHS compliance. This unit operates within a pressure range of -0.095 MPa to 1.2 MPa (-0.95 bar to 12 bar / -13.775 psi to 174 psi) and an ambient temperature range of -10 °C to 60 °C, utilizing compressed air as per ISO 8573-1:2010 [7:-:-] with provisions for lubricated operation. It achieves a normal nominal flow rate from 1050 l/min to 2083 l/min normalized to DIN 1343, an ISO 8778 standardized nominal flow rate between 1138.2 l/min and 2258 l/min, a corrosion resistance class of CRC 1, and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8059263
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8059263.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal width: 7.85 mm
Operating pressure for entire temperature range: -0.095 MPa...1.2 MPa | -0.95 bar...12 bar | -13.775 psi...174 psi
Normal nominal ow rate (normalized to DIN 1343): 1050 l/min...2083 l/min
Nominal ow rate standardized according to ISO 8778: 1138.2 l/min...2258 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Lubricated operation possible
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -10 °C...60 °C
Product weight: 29 g
Pneumatic connection 1: Internal thread G3/8
Note on materials: RoHS compliant
Information on materials: Galvanized steel

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8059263. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
