Reference imageConfirm configuration by manufacturer part number.
Festo
8059264

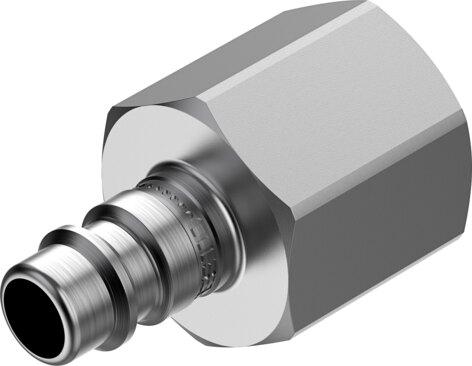

Quick coupling plug NPHS-S6-M-G12F
This Festo industrial component, part number 8059264, features a nominal width of 7.85 mm and an internal thread G1/2 pneumatic connection 1 constructed from galvanized steel with RoHS compliance. It operates within a pressure range of -0.095 MPa to 1.2 MPa (-0.95 bar to 12 bar / -13.775 psi to 174 psi) and handles compressed air according to ISO 8573-1:2010 [7:-:-] with a normal nominal flow rate of 1038 l/min to 2050 l/min normalized to DIN 1343. The 49 g unit supports lubricated operation across an ambient temperature range of -10 °C to 60 °C, possessing a corrosion resistance class of CRC 1 and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8059264
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8059264.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 7.85 mm
- Operating pressure for entire temperature range
- -0.095 MPa...1.2 MPa | -0.95 bar...12 bar | -13.775 psi...174 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 1038 l/min...2050 l/min
- Nominal ow rate standardized according to ISO 8778
- 1125.2 l/min...2222.2 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 49 g
- Pneumatic connection 1
- Internal thread G1/2
- Note on materials
- RoHS compliant
- Information on materials
- Galvanized steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8059264. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
