Name: Festo 8059265 Quick coupling plug NPHS-S6-M-BC9
Brand: Festo

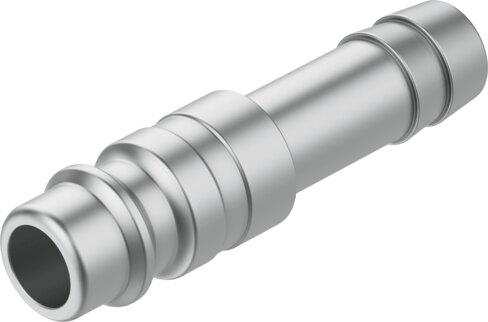

Quick coupling plug NPHS-S6-M-BC9

The Festo part number 8059265 is an industrial pneumatic component featuring a 7 mm nominal width and a 9 mm barbed hose fitting for connection 1. Operating within a pressure range of -0.095 MPa to 1.2 MPa (-0.95 bar to 12 bar / -13.775 psi to 174 psi), this galvanized steel device accommodates compressed air according to ISO 8573-1:2010 [7:-:-] alongside lubricated operation capabilities. It delivers a normal nominal flow rate from 966 l/min to 1700 l/min, standardized flow rates from 1047.1 l/min to 1842.8 l/min according to ISO 8778, and functions across an ambient temperature range of -10 °C to 60 °C with a product weight of 17 g. Featuring a CRC rating of 1 for low corrosion stress, VDMA24364-B1/B2-L LABS conformity, and RoHS compliant materials, this unit is ready for your system integration. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8059265
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8059265.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal width: 7 mm
Operating pressure for entire temperature range: -0.095 MPa...1.2 MPa | -0.95 bar...12 bar | -13.775 psi...174 psi
Normal nominal ow rate (normalized to DIN 1343): 966 l/min...1700 l/min
Nominal ow rate standardized according to ISO 8778: 1047.1 l/min...1842.8 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Lubricated operation possible
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -10 °C...60 °C
Product weight: 17 g
Pneumatic connection 1: 9 mm barbed hose tting
Note on materials: RoHS compliant
Information on materials: Galvanized steel

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8059265. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
