Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
8059272

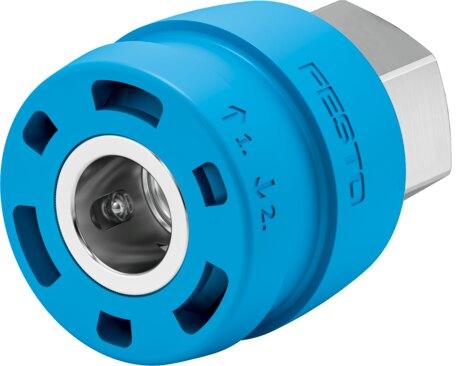

Quick coupling socket NPHS-D6-P-G38F
The Festo industrial component, part number 8059272, features a 10.5 mm nominal width and a G3/8 internal thread pneumatic connection 1. Operating within a pressure range of -0.095 MPa to 1.2 MPa and an ambient temperature range of -10 °C to 60 °C, this 114 g unit utilizes nickel-plated brass housing, NBR seals, and high-alloy stainless steel internal elements for compressed air media according to ISO 8573-1:2010 [7:-:-]. It achieves a normal nominal flow rate of 1203 l/min to 2083 l/min alongside a standardized flow rate of 1304.1 l/min to 2258 l/min, maintaining RoHS compliance and a low corrosion stress classification. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8059272
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8059272.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 10.5 mm
- Operating pressure for entire temperature range
- -0.095 MPa...1.2 MPa | -0.95 bar...12 bar | -13.775 psi...174 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 1203 l/min...2083 l/min
- Nominal ow rate standardized according to ISO 8778
- 1304.1 l/min...2258 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 114 g
- Pneumatic connection 1
- Internal thread G3/8
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Material of spring
- high-alloy stainless steel
- Housing material
- Brass, nickel-plated
- Threaded coupling material
- Brass, nickel-plated
- Inner raceway material
- POM
- Ball material
- high-alloy stainless steel
- Material of pins
- high-alloy stainless steel
- Valve body material
- Brass
- Material releasing sleeve
- POM | PP | high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8059272. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
