Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

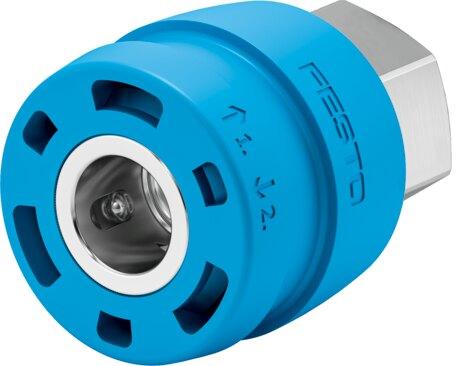

Reference imageConfirm configuration by manufacturer part number.
Festo
8059273
Quick coupling socket NPHS-D6-P-G12F
The Festo 8059273 is an industrial component featuring a 10.5 mm nominal width, G1/2 internal thread pneumatic connection 1, and an operating pressure range of -0.095 MPa to 1.2 MPa. This part utilizes a nickel-plated brass housing, brass threaded coupling and valve body, NBR seals, high-alloy stainless steel spring, balls, and pins, alongside a POM inner raceway, achieving a product weight of 122 g with a corrosion resistance class of 1 and VDMA24364-B1/B2-L LABS conformity. It operates within an ambient temperature range of -10 °C to 60 °C, supporting compressed air media per ISO 8573-1:2010 [7:-:-] with optional lubricated operation, delivering a normal nominal flow rate from 1008 l/min to 2050 l/min and an ISO 8778 standardized flow rate from 1092.7 l/min to 2222.2 l/min. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8059273
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8059273.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 10.5 mm
- Operating pressure for entire temperature range
- -0.095 MPa...1.2 MPa | -0.95 bar...12 bar | -13.775 psi...174 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 1008 l/min...2050 l/min
- Nominal ow rate standardized according to ISO 8778
- 1092.7 l/min...2222.2 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 122 g
- Pneumatic connection 1
- Internal thread G1/2
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Material of spring
- high-alloy stainless steel
- Housing material
- Brass, nickel-plated
- Threaded coupling material
- Brass, nickel-plated
- Inner raceway material
- POM
- Ball material
- high-alloy stainless steel
- Material of pins
- high-alloy stainless steel
- Valve body material
- Brass
- Material releasing sleeve
- POM | PP | high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8059273. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
