Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
8059275

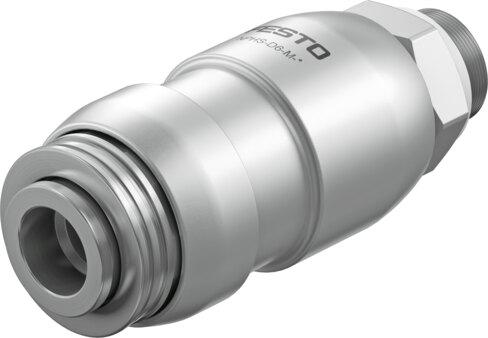

Quick coupling socket NPHS-D6-M-G14
The Festo industrial component, part number 8059275, features an 8.2 mm nominal width and an external thread G1/4 pneumatic connection 1, weighing 173 g with a nominal tightening torque of 7 Nm at a ±20% tolerance. Constructed with a nickel-plated brass housing and threaded coupling, a colorless anodized wrought aluminum alloy sleeve, NBR seals, high-alloy stainless steel spring, and aluminum with HNBR threaded seal, it operates within a pressure range of -0.095 MPa to 1.2 MPa and ambient temperatures from -20 °C to 80 °C. This RoHS-compliant unit delivers a normal nominal flow rate of 1750 l/min to 1833 l/min normalized to DIN 1343, an ISO 8778 standardized flow rate of 1897 l/min to 1987 l/min, and functions with compressed air per ISO 8573-1:2010 [7:-:-] alongside lubricated operation capabilities. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8059275
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8059275.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 8.2 mm
- Operating pressure for entire temperature range
- -0.095 MPa...1.2 MPa | -0.95 bar...12 bar | -13.775 psi...174 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 1750 l/min...1833 l/min
- Nominal ow rate standardized according to ISO 8778
- 1897 l/min...1987 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Nominal tightening torque
- 7 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 173 g
- Pneumatic connection 1
- External thread G1/4
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Material of spring
- high-alloy stainless steel
- Housing material
- Brass, nickel-plated
- Material of threaded seal
- Aluminum | HNBR
- Threaded coupling material
- Brass, nickel-plated
- Sleeve material
- Wrought aluminum alloy | Colorless anodized
- Inner raceway material
- Brass
- Ball material
- high-alloy stainless steel
- Material releasing sleeve
- Brass, nickel-plated
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8059275. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
