Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

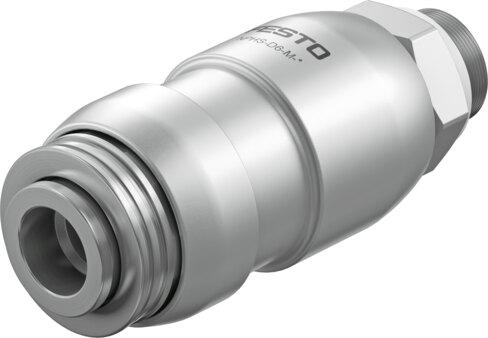

Reference imageConfirm configuration by manufacturer part number.
Festo
8059277
Quick coupling socket NPHS-D6-M-G12
The Festo 8059277 industrial component features a nominal width of 10 mm with an operating pressure range from -0.95 bar to 12 bar and a normal nominal flow rate between 2000 l/min and 2100 l/min according to DIN 1343. Constructed with a nickel-plated brass housing, wrought aluminum alloy anodized sleeve, and NBR seals, this unit supports compressed air operating mediums conforming to ISO 8573-1:2010 [7:-:-] alongside lubricated operation capabilities. It integrates an external G1/2 threaded connection, a nominal tightening torque of 25 Nm with a ±20% tolerance, and a total product weight of 200 g while maintaining a corrosion resistance class of 1 and RoHS compliance. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8059277
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8059277.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 10 mm
- Operating pressure for entire temperature range
- -0.095 MPa...1.2 MPa | -0.95 bar...12 bar | -13.775 psi...174 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 2000 l/min...2100 l/min
- Nominal ow rate standardized according to ISO 8778
- 2168 l/min...2276.4 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Nominal tightening torque
- 25 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 200 g
- Pneumatic connection 1
- External thread G1/2
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Material of spring
- high-alloy stainless steel
- Housing material
- Brass, nickel-plated
- Material of threaded seal
- Aluminum | HNBR
- Threaded coupling material
- Brass, nickel-plated
- Sleeve material
- Wrought aluminum alloy | Colorless anodized
- Inner raceway material
- Brass
- Ball material
- high-alloy stainless steel
- Material releasing sleeve
- Brass, nickel-plated
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8059277. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
