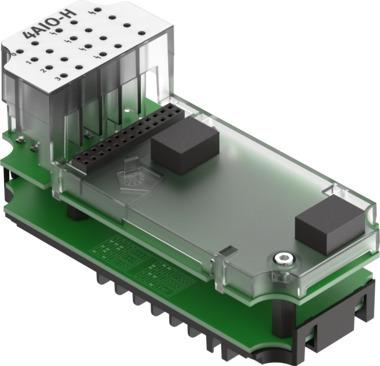

Reference imageConfirm configuration by manufacturer part number.
Festo
8059847
Input module CPX-4AE-4AA-H
Manufactured by Festo, part number 8059847 is an industrial component supporting the HART protocol, featuring dimensions of 50 mm by 107 mm by 70 mm and a product weight of 77.4 g for mounting on an interlinking block. The unit incorporates PA-reinforced and PC housing materials, integrated LED indicators for group diagnostics, channel diagnostics, and channel status, alongside DIL switch control elements and comprehensive diagnostic capabilities including wire break, short circuit, and limit value violations per channel. It operates within an ambient temperature range of -5 °C to 50 °C, withstands a maximum cable length of 500 m, and complies with the EU EMC directive with RoHS-compliant materials. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8059847
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8059847.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Protocol
- HART
- Dimensions W x L x H
- (incl. interlinking block and connection system) | 50 mm x 107 mm x 70 mm
- Width dimension
- 50 mm
- Type of mounting
- On interlinking block
- Product weight
- 77.4 g
- Ambient temperature
- -5 °C...50 °C
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 95 % | Non-condensing
- Degree of protection
- Depends on manifold block
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress | (when installed)
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Max. cable length
- 500 m
- LABS (PWIS) conformity
- VDMA24364-B2-L
- CE marking (see declaration of conformity)
- As per EU EMC directive
- Note on materials
- RoHS-compliant
- Housing material
- PA-reinforced | PC
- LED indicators
- 1 group diagnostics | 4 channel diagnostics | 4 channel status
- Diagnostics
- Wire break per channel | Limit value violation per channel | Short circuit/overload per channel | Parameterization error | Overow/underow | Limit value violation as per NE43 per channel
- Control elements
- DIL switch
