Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

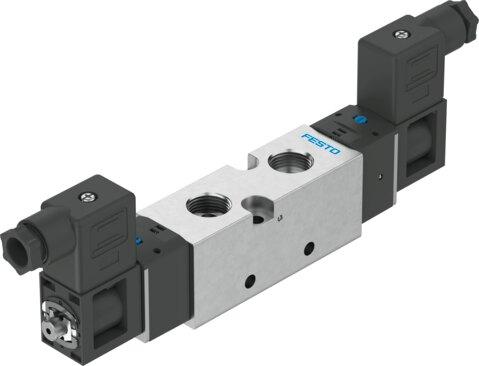

Reference imageConfirm configuration by manufacturer part number.
Festo
8060311
Air solenoid valve VUVS-LK30-B52-D-G38-1B2+GL-S
The Festo 8060311 is a 31 mm bistable 5/2-way industrial component utilizing a piston gate valve structural design with a soft sealing principle and positive overlap lap. Featuring an electrical actuation type with piloted control, internal pilot air supply port, and non-reversible flow direction, this part operates at 24V DC within an operating pressure range of 0.15 MPa to 0.8 MPa (1.5 bar to 8 bar). It delivers a normal nominal flow rate of 1600 l/min through G3/8 pneumatic working ports, supported by an 8.1 mm nominal width, adjustable exhaust air function, b-value of 0.37, and C value of 7.03 l/sbar. The unit offers any mounting position, detenting and non-detenting manual override, and an IP65 degree of protection when used with a plug socket as per IEC 60529. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8060311
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8060311.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Electrical
- Valve size
- 31 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1600 l/min
- Pneumatic working port
- G3/8
- Operating voltage
- 24V DC
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Structural design
- Piston gate valve
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 8.1 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- b-value
- 0.37
- C value
- 7.03 l/sbar
- Changeover time
- 10 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 2500 µs
- Max. negative test pulse on 1 signal
- 1100 µs
- Coil characteristics
- 24 V DC: 3.3 W
- Permissible voltage uctuations
- +/- 10%
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8060311. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
