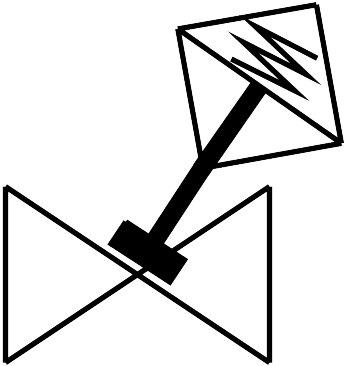

Name: Festo 8060516 Angle seat valve VZXA-A-TS6-32-M2-V13T-16-M-90-26-PR-V4
Brand: Festo

Angle seat valve VZXA-A-TS6-32-M2-V13T-16-M-90-26-PR-V4

The Festo part number 8060516 is a 2/2 poppet valve with a diaphragm actuator featuring external pneumatic control via a G1/8 internal thread and an operating pressure range of 0.5 MPa to 0.7 MPa. Designed for in-line installation in any mounting position, this non-reversible valve directs flow above the valve seat for vapor, inert gas, and filtered compressed air media up to 600 mm²/s viscosity, handling medium pressures from 0 MPa to 1.6 MPa and temperatures between -10 °C and 180 °C with a Kv flow rate of 35.4 m³/h. It utilizes a mechanical spring reset, a G1 1/4 threaded sleeve cable connection per DIN ISO 228, and is rated for weather-protected exterior locations based on IEC 60654-1 class C1. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8060516
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8060516.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Structural design: Poppet valve with diaphragm actuator
Actuation type: Pneumatic
Mounting position: Any
Type of mounting: In-line installation
Cable connection: Threaded sleeve G1 1/4 as per DIN ISO 228
Valve function: 2/2
Flow direction: Non-reversible | Above valve seat, for gaseous media
Medium pressure: 0 MPa...1.6 MPa | 0 bar...16 bar
Reset method: Mechanical spring
Type of control: Externally controlled
Pneumatic connection: Internal thread G1/8
Operating pressure: 0.5 MPa...0.7 MPa | 5 bar...7 bar | 72.5 psi...101.5 psi
Medium: Vapor | Inert gas | Filtered compressed air, 200 µm lter mesh
Control of the medium: On/oﬀ operation
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Max. viscosity: 600 mm²/s
Temperature of medium: -10 °C...180 °C
Ambient temperature: 0 °C...60 °C
Flow rate Kv: 35.4 m³/h
Use in exterior area: Weather-protected locations class C1 based on IEC 60654-1
Note on materials: RoHS compliant
LABS (PWIS) conformity: VDMA24364 Zone III
Valve housing material: Cast stainless steel
Material number, tting housing: 1,4409
Seals material: NBR

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8060516. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
