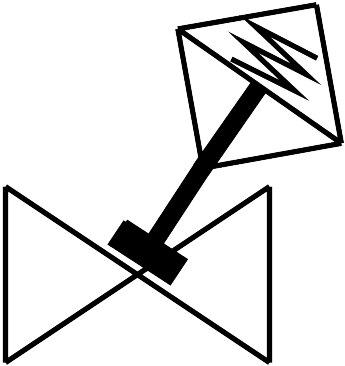

Name: Festo 8060523 Angle seat valve VZXA-A-TS7-1 1/4"-M2-V14T-16-M-90-26-PR-V4
Brand: Festo

Angle seat valve VZXA-A-TS7-1 1/4"-M2-V14T-16-M-90-26-PR-V4

The Festo 8060523 is a 2/2 externally controlled industrial component featuring a poppet valve design with a diaphragm actuator and a threaded sleeve 1 1/4 connection per ANSI/ASME B 1.20.1 for in-line installation in any mounting position. It directs non-reversible flow above the valve seat for gaseous media, vapor, inert gas, and filtered compressed air with a 200 µm filter mesh up to 600 mm²/s viscosity, operating across a medium pressure range of 0 bar to 16 bar and a Kv flow rate of 35.4 m³/h. Featuring a mechanical spring reset method, G1/8 internal thread pneumatic connection, and weather-protected exterior use class C1 based on IEC 60654-1, this valve handles medium temperatures from -10 °C to 180 °C and ambient temperatures from 0 °C to 60 °C at an operating pressure of 5 bar to 7 bar using ISO 8573-1:2010 [7:4:4] compressed air for on/off medium control. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8060523
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8060523.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Structural design: Poppet valve with diaphragm actuator
Actuation type: Pneumatic
Mounting position: Any
Type of mounting: In-line installation
Cable connection: Threaded sleeve 1 1/4 as per ANSI/ASME B 1.20.1
Valve function: 2/2
Flow direction: Non-reversible | Above valve seat, for gaseous media
Medium pressure: 0 MPa...1.6 MPa | 0 bar...16 bar
Reset method: Mechanical spring
Type of control: Externally controlled
Pneumatic connection: Internal thread G1/8
Operating pressure: 0.5 MPa...0.7 MPa | 5 bar...7 bar | 72.5 psi...101.5 psi
Medium: Vapor | Inert gas | Filtered compressed air, 200 µm lter mesh
Control of the medium: On/oﬀ operation
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Max. viscosity: 600 mm²/s
Temperature of medium: -10 °C...180 °C
Ambient temperature: 0 °C...60 °C
Flow rate Kv: 35.4 m³/h
Use in exterior area: Weather-protected locations class C1 based on IEC 60654-1
Note on materials: RoHS compliant
LABS (PWIS) conformity: VDMA24364 Zone III
Valve housing material: Cast stainless steel
Material number, tting housing: ASTM A351-CF3M
Seals material: NBR
