8060524

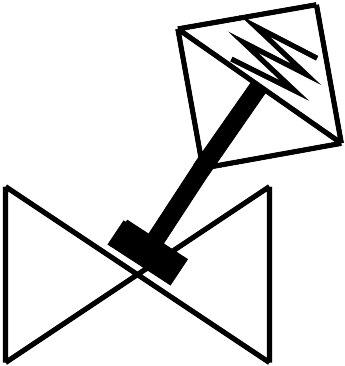

Name: Festo 8060524 Angle seat valve VZXA-A-TS7-1 1/2"-M2-V14T-16-M-90-26-PR-V4
Brand: Festo

Angle seat valve VZXA-A-TS7-1 1/2"-M2-V14T-16-M-90-26-PR-V4

The Festo part number 8060524 is an externally controlled 2/2 poppet valve featuring a diaphragm actuator and non-reversible flow direction above the valve seat for gaseous media. This in-line pneumatic component operates with medium pressures from 0 to 1.6 MPa, a Kv flow rate of 47.4 m3/h, and a mechanical spring reset method utilizing a 1 1/2 ANSI/ASME B 1.20.1 threaded sleeve cable connection and internal G1/8 pneumatic connection. Designed for on/off operation with vapor, inert gas, or filtered compressed air up to 600 mm2/s viscosity, it functions within a medium temperature range of -10 °C to 180 °C and an ambient temperature range of 0 °C to 60 °C in weather-protected exterior locations. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8060524
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8060524.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Structural design: Poppet valve with diaphragm actuator
Actuation type: Pneumatic
Mounting position: Any
Type of mounting: In-line installation
Cable connection: Threaded sleeve 1 1/2 as per ANSI/ASME B 1.20.1
Valve function: 2/2
Flow direction: Non-reversible | Above valve seat, for gaseous media
Medium pressure: 0 MPa...1.6 MPa | 0 bar...16 bar
Reset method: Mechanical spring
Type of control: Externally controlled
Pneumatic connection: Internal thread G1/8
Operating pressure: 0.5 MPa...0.7 MPa | 5 bar...7 bar | 72.5 psi...101.5 psi
Medium: Vapor | Inert gas | Filtered compressed air, 200 µm lter mesh
Control of the medium: On/oﬀ operation
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Max. viscosity: 600 mm²/s
Temperature of medium: -10 °C...180 °C
Ambient temperature: 0 °C...60 °C
Flow rate Kv: 47.4 m³/h
Use in exterior area: Weather-protected locations class C1 based on IEC 60654-1
Note on materials: RoHS compliant
LABS (PWIS) conformity: VDMA24364 Zone III
Valve housing material: Cast stainless steel
Material number, tting housing: ASTM A351-CF3M
Seals material: NBR
