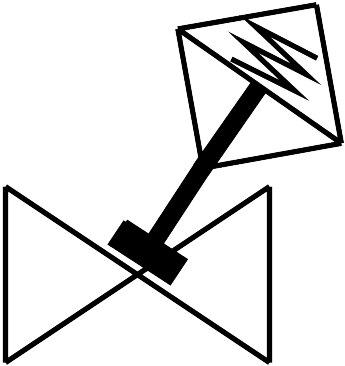

Reference imageConfirm configuration by manufacturer part number.
Festo
8060526
Angle seat valve VZXA-A-TS7-2 1/2"-M2-V14T-8-M-90-26-PR-V4
The Festo 8060526 is a 2/2 poppet valve with a diaphragm actuator utilizing pneumatic, externally controlled operation with a mechanical spring reset method. Designed for in-line installation with any mounting position, it features an ANSI/ASME B 1.20.1 threaded sleeve 2 1/2 cable connection and a G1/8 internal thread pneumatic connection for non-reversible flow above the valve seat. It regulates filtered compressed air, inert gas, and vapor media up to 600 mm²/s viscosity, operating within a 0.5 MPa to 0.7 MPa operating pressure range, 0 bar to 8 bar medium pressure range, -10 °C to 180 °C medium temperature, and 0 °C to 60 °C ambient temperature with a Kv flow rate of 77.4 m³/h. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8060526
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8060526.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- Poppet valve with diaphragm actuator
- Actuation type
- Pneumatic
- Mounting position
- Any
- Type of mounting
- In-line installation
- Cable connection
- Threaded sleeve 2 1/2 as per ANSI/ASME B 1.20.1
- Valve function
- 2/2
- Flow direction
- Non-reversible | Above valve seat, for gaseous media
- Medium pressure
- 0 MPa...0.8 MPa | 0 bar...8 bar
- Reset method
- Mechanical spring
- Type of control
- Externally controlled
- Pneumatic connection
- Internal thread G1/8
- Operating pressure
- 0.5 MPa...0.7 MPa | 5 bar...7 bar | 72.5 psi...101.5 psi
- Medium
- Vapor | Inert gas | Filtered compressed air, 200 µm lter mesh
- Control of the medium
- On/off operation
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Max. viscosity
- 600 mm²/s
- Temperature of medium
- -10 °C...180 °C
- Ambient temperature
- 0 °C...60 °C
- Flow rate Kv
- 77.4 m³/h
- Use in exterior area
- Weather-protected locations class C1 based on IEC 60654-1
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Valve housing material
- Cast stainless steel
- Material number, tting housing
- ASTM A351-CF3M
- Seals material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8060526. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
