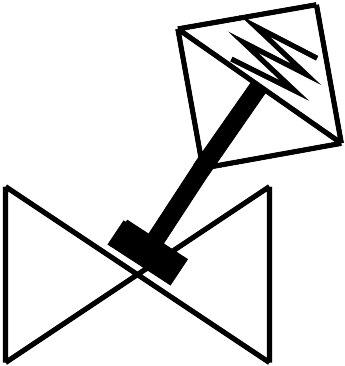

Reference imageConfirm configuration by manufacturer part number.
Festo
8060539
Angle seat valve VZXA-B-TS6-50-M2-V13T-10-M-90-26-V4
The Festo 8060539 is an externally controlled 2/2 poppet valve utilizing a diaphragm actuator with mechanical spring reset and a non-reversible flow direction under the valve seat for gaseous and liquid media. This pneumatic component features in-line installation with any mounting position, a G2 threaded sleeve cable connection, and a G1/8 internal thread pneumatic connection, operating at a medium pressure of 0 bar to 10 bar and an operating pressure of 5 bar to 7 bar (72.5 psi to 101.5 psi). It accommodates a maximum viscosity of 600 mm²/s, a medium temperature ranging from -10 °C to 180 °C, an ambient temperature of 0 °C to 60 °C, and delivers a Kv flow rate of 60.4 m³/h for vapor, hydraulic fluid based on mineral oil, inert gas, mineral oil, water, neutral liquids, and filtered compressed air. Submit the exact part number, quantity, and application requirements to request a quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8060539
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8060539.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- Poppet valve with diaphragm actuator
- Actuation type
- Pneumatic
- Mounting position
- Any
- Type of mounting
- In-line installation
- Cable connection
- Threaded sleeve G2 as per DIN ISO 228
- Valve function
- 2/2
- Flow direction
- Non-reversible | Under valve seat, for gaseous and liquid media
- Medium pressure
- 0 MPa...1 MPa | 0 bar...10 bar
- Reset method
- Mechanical spring
- Type of control
- Externally controlled
- Pneumatic connection
- Internal thread G1/8
- Operating pressure
- 0.5 MPa...0.7 MPa | 5 bar...7 bar | 72.5 psi...101.5 psi
- Medium
- Vapor | Hydraulic uid based on mineral oil | Inert gas | Mineral oil | Water | Filtered compressed air, 200 µm lter mesh | Neutral liquids
- Control of the medium
- On/off operation
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Max. viscosity
- 600 mm²/s
- Temperature of medium
- -10 °C...180 °C
- Ambient temperature
- 0 °C...60 °C
- Flow rate Kv
- 60.4 m³/h
- Use in exterior area
- Weather-protected locations class C1 based on IEC 60654-1
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
