Name: Festo 8060554 Angle seat valve VZXA-B-TS7-2 1/2"-M2-V14T-5.6-M-90-26-V4
Brand: Festo

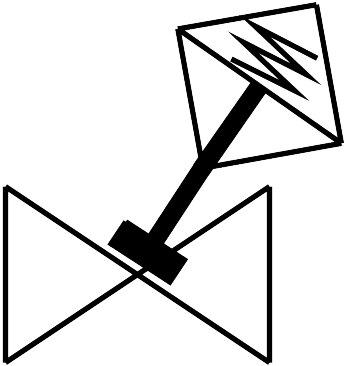

Angle seat valve VZXA-B-TS7-2 1/2"-M2-V14T-5.6-M-90-26-V4

This Festo industrial component, part number 8060554, features a poppet valve structural design with a diaphragm actuator and pneumatic actuation for 2/2 valve functions. It operates via an externally controlled configuration with a mechanical spring reset method, utilizing compressed air as an operating medium per ISO 8573-1:2010 [7:4:4] at an operating pressure range of 0.5 MPa to 0.7 MPa (5 bar to 7 bar). The unit accommodates medium pressures from 0 MPa to 0.56 MPa (0 bar to 5.6 bar), a Kv flow rate of 77.9 m³/h, and handles media temperatures between -10 °C and 180 °C with a maximum viscosity of 600 mm²/s. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8060554
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8060554.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Structural design: Poppet valve with diaphragm actuator
Actuation type: Pneumatic
Mounting position: Any
Type of mounting: In-line installation
Cable connection: Threaded sleeve 2 1/2 as per ANSI/ASME B 1.20.1
Valve function: 2/2
Flow direction: Non-reversible | Under valve seat, for gaseous and liquid media
Medium pressure: 0 MPa...0.56 MPa | 0 bar...5.6 bar
Reset method: Mechanical spring
Type of control: Externally controlled
Pneumatic connection: Internal thread G1/8
Operating pressure: 0.5 MPa...0.7 MPa | 5 bar...7 bar | 72.5 psi...101.5 psi
Medium: Vapor | Hydraulic uid based on mineral oil | Inert gas | Mineral oil | Water | Filtered compressed air, 200 µm lter mesh | Neutral liquids
Control of the medium: On/oﬀ operation
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Max. viscosity: 600 mm²/s
Temperature of medium: -10 °C...180 °C
Ambient temperature: 0 °C...60 °C
Flow rate Kv: 77.9 m³/h
Use in exterior area: Weather-protected locations class C1 based on IEC 60654-1
Note on materials: RoHS compliant
LABS (PWIS) conformity: VDMA24364 Zone III

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8060554. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
