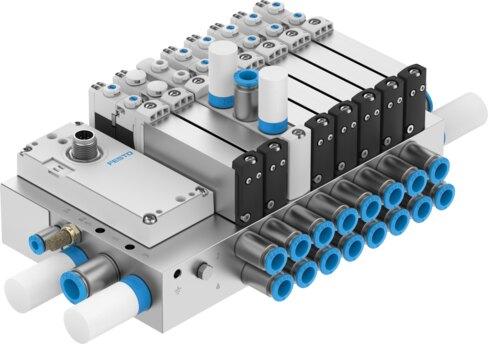

Reference imageConfirm configuration by manufacturer part number.
Festo
8060699
Valve manifold VTUG-EX
Festo Valve manifold VTUG-EX, part number 8060699, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 8060699
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8060699.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Electrical actuation
- Fieldbus | I-Port | IO-Link® | Multi-pin
- Electrical I/O system
- No
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Temperature of medium
- -5 °C...60 °C
- Ambient temperature
- -5 °C...60 °C
- Storage temperature
- -10 °C...60 °C
- Degree of protection
- IP20 | IP65
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure
- 1.5 bar...8 bar
- Operating pressure for valve manifold with internal pilot air supply
- 1.5 bar...8 bar
- LABS (PWIS) conformity
- VDMA24364-B2-L
- CE marking (see declaration of conformity)
- As per EU EMC directive | as per EU explosion protection directive (ATEX) | As per EU RoHS directive
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- Explosion prevention and protection
- Class I, Div. 2 (CA) | Class I, Div. 2 (US) | Class II, Div. 2 (CA) | Class II, Div. 2 (US) | Zone 2 (ATEX) | Zone 2 (BR) | Zone 2 (CA) | Zone 2 (CN) | Zone 2 (IEC-EX) | Zone 2 (KR) | Zone 2 (US)
Technical library
Documents and Data Sheets
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8060699. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
