Festo
8061478

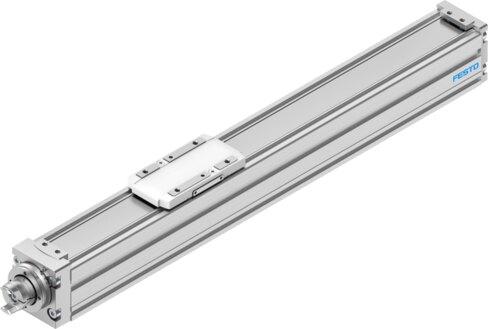

Ball screw axis ELGC-BS-KF-32-200-8P
The Festo 8061478 is an electromechanical linear axis featuring a ball screw structural design with an 8 mm screw diameter, an 8 mm/U spindle pitch, and a 200 mm working stroke. This size 32 component accommodates either a stepper or servo motor, delivers a maximum speed of 0.6 m/s at up to 4500 rpm, and achieves a repetition accuracy of ±0.015 mm with a 0.15 mm reversing backlash. Built with a recirculating ball bearing guide, it operates at a 100% duty cycle, supports any mounting position, and features position sensing via proximity switch or for inductive sensors. Certified for VDMA24364 Zone III LABS conformity, ISO 14644-1 Class 7 cleanrooms, and Li-ion battery production with reduced Cu/Zn/Ni values, this assembly withstands a maximum acceleration of 15 m/s² with 0 mm stroke reserve. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8061478
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8061478.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 200 mm
- Size
- 32
- Stroke reserve
- 0 mm
- Reversing backlash
- 0.15 mm
- Screw diameter
- 8 mm
- Spindle pitch
- 8 mm/U
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With ball screw
- Motor type
- Stepper motor | Servo motor
- Spindle type
- Ball screw
- Position sensing
- Via proximity switch | For inductive sensors
- Max. acceleration
- 15 m/s²
- Max. rotational speed
- 4500 rpm
- Max. speed
- 0.6 m/s
- Repetition accuracy
- ±0.015 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 7 according to ISO 14644-1
- Storage temperature
- -20 °C...60 °C
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...50 °C
- Impact energy in the end positions
- 0.25 mJ
- Note on the impact energy in the end positions
- At maximum speed of the reference run of 0.01 m/s
- 2nd moment of area Iy
- 38000 mm⁴
- 2nd moment of area Iz
- 45000 mm⁴
- No-load torque at maximum travel speed
- 0.04 Nm
- No-load torque at minimum travel speed
- 0.02 Nm
