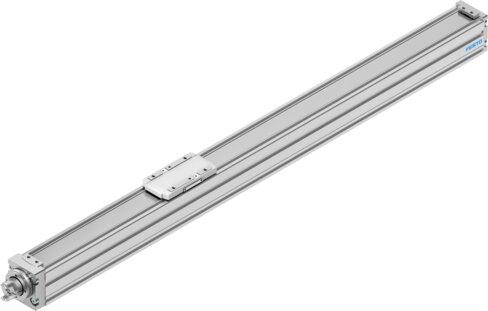

Name: Festo 8061482 Ball screw axis ELGC-BS-KF-32-600-8P
Brand: Festo

Ball screw axis ELGC-BS-KF-32-600-8P

The Festo 8061482 is an electromechanical linear axis featuring a ball screw with an 8 mm screw diameter, an 8 mm/U spindle pitch, and a 600 mm working stroke. Integrated with a recirculating ball bearing guide and a 0.15 mm reversing backlash, this unit accommodates stepper or servo motors while supporting a maximum speed of 0.6 m/s, a maximum rotational speed of 4500 rpm, and a maximum acceleration of 15 m/s² with a repetition accuracy of ±0.015 mm. Engineered with a 100% duty cycle, size 32 dimensions, and any mounting position, it provides position sensing via proximity switch or for inductive sensors. Furthermore, this component meets VDMA24364 Zone III LABS conformity, is suitable for battery production with reduced Cu/Zn/Ni values (F1a), and achieves Class 7 cleanroom suitability according to ISO 14644-1. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8061482
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8061482.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Working stroke: 600 mm
Size: 32
Stroke reserve: 0 mm
Reversing backlash: 0.15 mm
Screw diameter: 8 mm
Spindle pitch: 8 mm/U
Mounting position: Any
Guide: Recirculating ball bearing
Structural design: Electromechanical linear axis | With ball screw
Motor type: Stepper motor | Servo motor
Spindle type: Ball screw
Position sensing: Via proximity switch | For inductive sensors
Max. acceleration: 15 m/s²
Max. rotational speed: 4500 rpm
Max. speed: 0.6 m/s
Repetition accuracy: ±0.015 mm
Duty cycle: 100%
LABS (PWIS) conformity: VDMA24364 Zone III
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 7 according to ISO 14644-1
Storage temperature: -20 °C...60 °C
Degree of protection: IP40
Ambient temperature: 0 °C...50 °C
Impact energy in the end positions: 0.25 mJ
Note on the impact energy in the end positions: At maximum speed of the reference run of 0.01 m/s
2nd moment of area Iy: 38000 mm⁴
2nd moment of area Iz: 45000 mm⁴
No-load torque at maximum travel speed: 0.04 Nm
No-load torque at minimum travel speed: 0.02 Nm

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8061482. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
