Festo
8061483

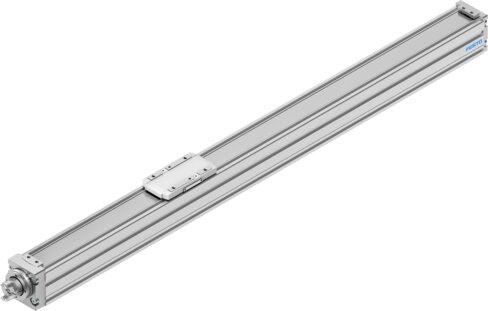

Ball screw axis ELGC-BS-KF-32-800-8P
The Festo 8061483 is an electromechanical linear axis featuring a ball screw with an 8 mm screw diameter, an 8 mm/U spindle pitch, and a size 32 profile providing an 800 mm working stroke. This component incorporates a recirculating ball bearing guide, a reversing backlash of 0.15 mm, and supports a maximum speed of 0.6 m/s, a maximum rotational speed of 4500 rpm, and a maximum acceleration of 15 m/s² at a 100% duty cycle. Operating in any mounting position, it includes position sensing for inductive sensors or via proximity switches and delivers a repetition accuracy of ±0.015 mm while meeting ISO 14644-1 Class 7 cleanroom standards, VDMA24364 Zone III LABS conformity, and reduced Cu/Zn/Ni battery production suitability (F1a). Submit the exact part number, quantity, and application requirements to receive a quote for this part.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8061483
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8061483.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 800 mm
- Size
- 32
- Stroke reserve
- 0 mm
- Reversing backlash
- 0.15 mm
- Screw diameter
- 8 mm
- Spindle pitch
- 8 mm/U
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With ball screw
- Motor type
- Stepper motor | Servo motor
- Spindle type
- Ball screw
- Position sensing
- Via proximity switch | For inductive sensors
- Max. acceleration
- 15 m/s²
- Max. rotational speed
- 4500 rpm
- Max. speed
- 0.6 m/s
- Repetition accuracy
- ±0.015 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 7 according to ISO 14644-1
- Storage temperature
- -20 °C...60 °C
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...50 °C
- Impact energy in the end positions
- 0.25 mJ
- Note on the impact energy in the end positions
- At maximum speed of the reference run of 0.01 m/s
- 2nd moment of area Iy
- 38000 mm⁴
- 2nd moment of area Iz
- 45000 mm⁴
- No-load torque at maximum travel speed
- 0.04 Nm
- No-load torque at minimum travel speed
- 0.02 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8061483. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
