Festo
8061489

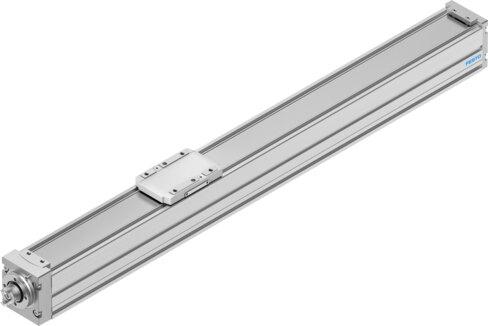

Ball screw axis ELGC-BS-KF-45-600-10P
The Festo 8061489 is an electromechanical linear axis featuring a ball screw with a size 45 design, a 600 mm working stroke, a 10 mm screw diameter, and a 10 mm/U spindle pitch. This component includes a recirculating ball bearing guide, accommodates stepper or servo motors, and achieves a maximum speed of 0.6 m/s, a maximum rotational speed of 3600 rpm, and a repetition accuracy of ±0.015 mm with a 100% duty cycle. It provides position sensing via proximity switches or for inductive sensors and conforms to VDMA24364 Zone III LABS conformity, ISO 14644-1 Class 7 cleanroom standards, and reduced Cu/Zn/Ni values for Li-ion battery production suitability. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8061489
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8061489.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 600 mm
- Size
- 45
- Stroke reserve
- 0 mm
- Reversing backlash
- 0.15 mm
- Screw diameter
- 10 mm
- Spindle pitch
- 10 mm/U
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With ball screw
- Motor type
- Stepper motor | Servo motor
- Spindle type
- Ball screw
- Position sensing
- Via proximity switch | For inductive sensors
- Max. acceleration
- 15 m/s²
- Max. rotational speed
- 3600 rpm
- Max. speed
- 0.6 m/s
- Repetition accuracy
- ±0.015 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 7 according to ISO 14644-1
- Storage temperature
- -20 °C...60 °C
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...50 °C
- Impact energy in the end positions
- 0.5 mJ
- Note on the impact energy in the end positions
- At maximum speed of the reference run of 0.01 m/s
- 2nd moment of area Iy
- 140000 mm⁴
- 2nd moment of area Iz
- 170000 mm⁴
- No-load torque at maximum travel speed
- 0.12 Nm
- No-load torque at minimum travel speed
- 0.032 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8061489. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
