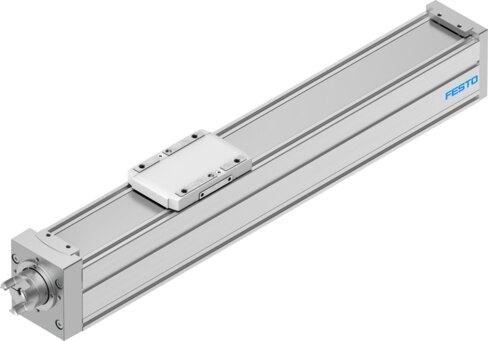

Reference imageConfirm configuration by manufacturer part number.
Festo
8061493
Ball screw axis ELGC-BS-KF-60-300-12P
The Festo 8061493 is an electromechanical linear axis featuring a ball screw with a 300 mm working stroke, a size 60 profile, and a 12 mm screw diameter with a 12 mm/U spindle pitch. Engineered with a recirculating ball bearing guide and a reversing backlash of 0.15 mm, this unit supports stepper or servo motors, achieves a maximum speed of 0.8 m/s with $\pm$0.01 mm repetition accuracy, and operates at a 100% duty cycle in any mounting position. It conforms to VDMA24364 Zone III LABS conformity standards, meets ISO 14644-1 Class 7 cleanroom suitability, and is rated for the production of Li-ion batteries with reduced Cu/Zn/Ni values (F1a). Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8061493
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8061493.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 300 mm
- Size
- 60
- Stroke reserve
- 0 mm
- Reversing backlash
- 0.15 mm
- Screw diameter
- 12 mm
- Spindle pitch
- 12 mm/U
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With ball screw
- Motor type
- Stepper motor | Servo motor
- Spindle type
- Ball screw
- Position sensing
- Via proximity switch | For inductive sensors
- Max. acceleration
- 15 m/s²
- Max. rotational speed
- 4000 rpm
- Max. speed
- 0.8 m/s
- Repetition accuracy
- ±0.01 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 7 according to ISO 14644-1
- Storage temperature
- -20 °C...60 °C
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...50 °C
- Impact energy in the end positions
- 1 mJ
- Note on the impact energy in the end positions
- At maximum speed of the reference run of 0.01 m/s
- 2nd moment of area Iy
- 441000 mm⁴
- 2nd moment of area Iz
- 542000 mm⁴
- No-load torque at maximum travel speed
- 0.246 Nm
- No-load torque at minimum travel speed
- 0.042 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8061493. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
