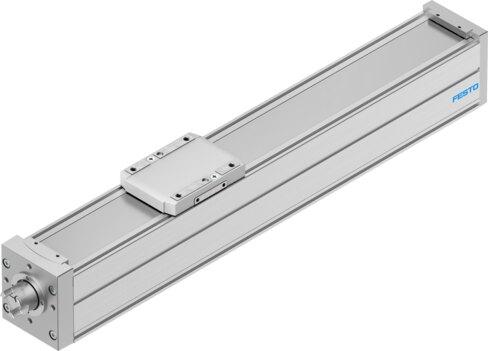

Reference imageConfirm configuration by manufacturer part number.
Festo
8061502
Ball screw axis ELGC-BS-KF-80-500-16P
The Festo 8061502 is an electromechanical linear axis featuring a ball screw with a 16 mm screw diameter, 16 mm/U spindle pitch, and an 80 size with a 500 mm working stroke. Designed with a recirculating ball bearing guide and a 0.15 mm reversing backlash, it supports stepper and servo motors up to a maximum rotational speed of 3750 rpm, max speed of 1 m/s, and max acceleration of 15 m/s² while delivering a repetition accuracy of ±0.01 mm at a 100% duty cycle in any mounting position. Position sensing is achieved via proximity switch or for inductive sensors, and the unit conforms to VDMA24364 Zone III LABS, ISO 14644-1 Cleanroom Class 7, and includes suitability for Li-ion battery production with reduced Cu/Zn/Ni values (F1a). Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8061502
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8061502.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 500 mm
- Size
- 80
- Stroke reserve
- 0 mm
- Reversing backlash
- 0.15 mm
- Screw diameter
- 16 mm
- Spindle pitch
- 16 mm/U
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With ball screw
- Motor type
- Stepper motor | Servo motor
- Spindle type
- Ball screw
- Position sensing
- Via proximity switch | For inductive sensors
- Max. acceleration
- 15 m/s²
- Max. rotational speed
- 3750 rpm
- Max. speed
- 1 m/s
- Repetition accuracy
- ±0.01 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 7 according to ISO 14644-1
- Storage temperature
- -20 °C...60 °C
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...50 °C
- Impact energy in the end positions
- 2 mJ
- Note on the impact energy in the end positions
- At maximum speed of the reference run of 0.01 m/s
- 2nd moment of area Iy
- 1370000 mm⁴
- 2nd moment of area Iz
- 1660000 mm⁴
- No-load torque at maximum travel speed
- 0.396 Nm
- No-load torque at minimum travel speed
- 0.095 Nm
