Festo
8062770

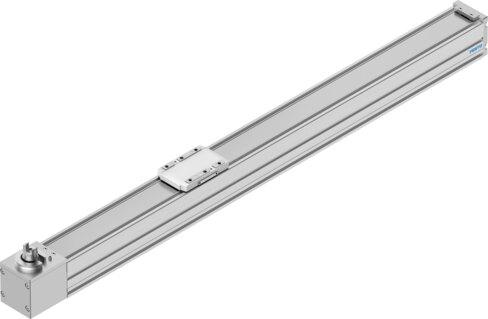

Belt driven linear actuator ELGC-TB-KF-45-500
The Festo part number 8062770 is an electromechanical linear axis featuring a toothed belt with a 2 mm pitch, a size 45 designation, and a 500 mm working stroke driven by a 19.1 mm effective diameter drive pinion. Engineered with a recirculating ball bearing guide, this component achieves a maximum speed of 1.2 m/s, a maximum acceleration of 15 m/s², and a repetition accuracy of ±0.1 mm across a 100% duty cycle. It accommodates stepper or servo motors, permits any mounting position, provides position sensing via proximity switch or inductive sensors, and maintains an IP40 rating within an ambient temperature range of 0 °C to 50 °C. Certified for cleanroom ISO Class 7 operations, VDMA24364 Zone III LABS conformity, and reduced Cu/Zn/Ni battery production suitability, this unit is built for specialized industrial environments. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8062770
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8062770.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 19.1 mm
- Working stroke
- 500 mm
- Size
- 45
- Stroke reserve
- 0 mm
- Toothed belt pitch
- 2 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With toothed belt
- Motor type
- Stepper motor | Servo motor
- Position sensing
- Via proximity switch | For inductive sensors
- Max. acceleration
- 15 m/s²
- Max. speed
- 1.2 m/s
- Repetition accuracy
- ±0.1 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 7 according to ISO 14644-1
- Storage temperature
- -20 °C...60 °C
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...50 °C
- Impact energy in the end positions
- 0.125 mJ
- Note on the impact energy in the end positions
- At maximum speed of the reference run of 0.01 m/s
- 2nd moment of area Iy
- 140000 mm⁴
- 2nd moment of area Iz
- 170000 mm⁴
- Max. driving torque
- 0.716 Nm
- Max. force Fy
- 880 N
- Max. force Fz
- 880 N
- Max. force Fy total axis
- 300 N
- Max. force Fz total axis
- 600 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8062770. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
