Name: Festo 8062771 Belt driven linear actuator ELGC-TB-KF-45-600
Brand: Festo

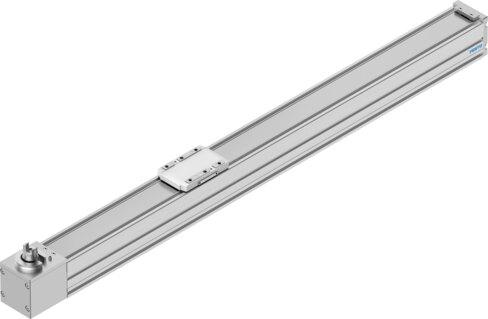

Belt driven linear actuator ELGC-TB-KF-45-600

The Festo 8062771 is an electromechanical linear axis featuring a toothed belt structural design with a size 45 footprint, a 600 mm working stroke, and a 19.1 mm drive pinion effective diameter. It incorporates a recirculating ball bearing guide supporting a maximum speed of 1.2 m/s, a maximum acceleration of 15 m/s², a repetition accuracy of ±0.1 mm, and a 100% duty cycle for stepper or servo motor integration with position sensing via proximity switches or inductive sensors. Built with an IP40 degree of protection, VDMA24364 Zone III LABS conformity, ISO 14644-1 Class 7 cleanroom suitability, and reduced Cu/Zn/Ni values for Li-ion battery production suitability, it operates within an ambient temperature range of 0 °C to 50 °C and an unrestricted mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8062771
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8062771.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Drive pinion eﬀective diameter: 19.1 mm
Working stroke: 600 mm
Size: 45
Stroke reserve: 0 mm
Toothed belt pitch: 2 mm
Mounting position: Any
Guide: Recirculating ball bearing
Structural design: Electromechanical linear axis | With toothed belt
Motor type: Stepper motor | Servo motor
Position sensing: Via proximity switch | For inductive sensors
Max. acceleration: 15 m/s²
Max. speed: 1.2 m/s
Repetition accuracy: ±0.1 mm
Duty cycle: 100%
LABS (PWIS) conformity: VDMA24364 Zone III
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 7 according to ISO 14644-1
Storage temperature: -20 °C...60 °C
Degree of protection: IP40
Ambient temperature: 0 °C...50 °C
Impact energy in the end positions: 0.125 mJ
Note on the impact energy in the end positions: At maximum speed of the reference run of 0.01 m/s
2nd moment of area Iy: 140000 mm⁴
2nd moment of area Iz: 170000 mm⁴
Max. driving torque: 0.716 Nm
Max. force Fy: 880 N
Max. force Fz: 880 N
Max. force Fy total axis: 300 N
Max. force Fz total axis: 600 N

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8062771. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
