Festo
8062774

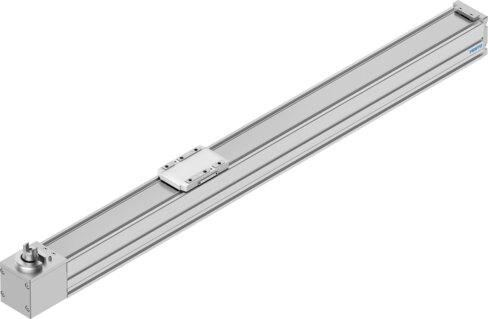

Belt driven linear actuator ELGC-TB-KF-45-1200
The Festo 8062774 is an electromechanical linear axis with a toothed belt featuring a size 45 designation, a 1200 mm working stroke, and a 19.1 mm drive pinion effective diameter. This component operates with a 2 mm toothed belt pitch, a maximum speed of 1.2 m/s, a maximum acceleration of 15 m/s², and a repetition accuracy of ±0.1 mm using a recirculating ball bearing guide in any mounting position. It accommodates stepper or servo motors, allows position sensing via proximity switch or inductive sensors, and meets ISO 14644-1 Class 7 cleanroom standards alongside VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8062774
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8062774.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 19.1 mm
- Working stroke
- 1200 mm
- Size
- 45
- Stroke reserve
- 0 mm
- Toothed belt pitch
- 2 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With toothed belt
- Motor type
- Stepper motor | Servo motor
- Position sensing
- Via proximity switch | For inductive sensors
- Max. acceleration
- 15 m/s²
- Max. speed
- 1.2 m/s
- Repetition accuracy
- ±0.1 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 7 according to ISO 14644-1
- Storage temperature
- -20 °C...60 °C
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...50 °C
- Impact energy in the end positions
- 0.125 mJ
- Note on the impact energy in the end positions
- At maximum speed of the reference run of 0.01 m/s
- 2nd moment of area Iy
- 140000 mm⁴
- 2nd moment of area Iz
- 170000 mm⁴
- Max. driving torque
- 0.716 Nm
- Max. force Fy
- 880 N
- Max. force Fz
- 880 N
- Max. force Fy total axis
- 300 N
- Max. force Fz total axis
- 600 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8062774. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
