Name: Festo 8062776 Belt driven linear actuator ELGC-TB-KF-60-200
Brand: Festo

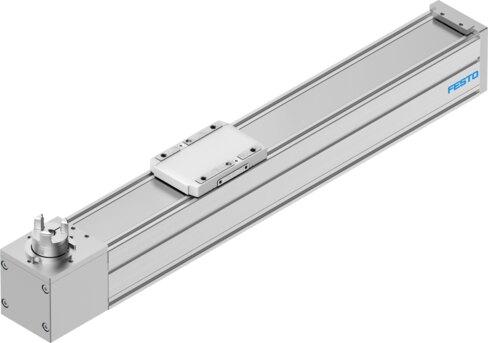

Belt driven linear actuator ELGC-TB-KF-60-200

The Festo 8062776 is an electromechanical linear axis with a toothed belt featuring a size 60 structural design, a 200 mm working stroke, and a 24.83 mm drive pinion effective diameter. This component utilizes a recirculating ball bearing guide, a 3 mm toothed belt pitch, and supports either a stepper motor or servo motor while achieving a maximum speed of 1.5 m/s, a maximum acceleration of 15 m/s², and a repetition accuracy of ±0.1 mm with a 100% duty cycle. Rated with an IP40 degree of protection and meeting ISO 14644-1 Class 7 cleanroom standards, it operates within ambient temperatures from 0 °C to 50 °C and features VDMA24364 Zone III LABS conformity along with F1a suitability for Li-ion battery production. Submit the exact part number, quantity, and application requirements for an official quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8062776
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8062776.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Drive pinion eﬀective diameter: 24.83 mm
Working stroke: 200 mm
Size: 60
Stroke reserve: 0 mm
Toothed belt pitch: 3 mm
Mounting position: Any
Guide: Recirculating ball bearing
Structural design: Electromechanical linear axis | With toothed belt
Motor type: Stepper motor | Servo motor
Position sensing: Via proximity switch | For inductive sensors
Max. acceleration: 15 m/s²
Max. speed: 1.5 m/s
Repetition accuracy: ±0.1 mm
Duty cycle: 100%
LABS (PWIS) conformity: VDMA24364 Zone III
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 7 according to ISO 14644-1
Storage temperature: -20 °C...60 °C
Degree of protection: IP40
Ambient temperature: 0 °C...50 °C
Impact energy in the end positions: 0.25 mJ
Note on the impact energy in the end positions: At maximum speed of the reference run of 0.01 m/s
2nd moment of area Iy: 441000 mm⁴
2nd moment of area Iz: 542000 mm⁴
Max. driving torque: 1.49 Nm
Max. force Fy: 3641 N
Max. force Fz: 3641 N
Max. force Fy total axis: 600 N
Max. force Fz total axis: 1800 N
