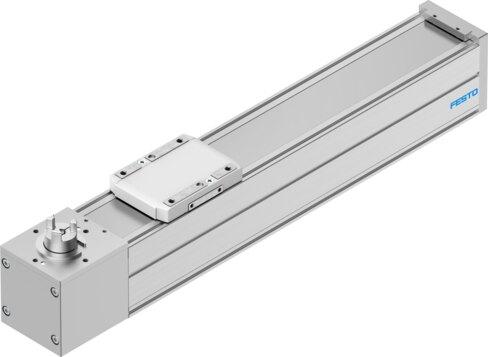

Name: Festo 8062787 Belt driven linear actuator ELGC-TB-KF-80-300
Brand: Festo

Belt driven linear actuator ELGC-TB-KF-80-300

The Festo 8062787 is an electromechanical linear axis featuring a toothed belt drive with a 33.42 mm drive pinion effective diameter, a 3 mm toothed belt pitch, and a size 80 structural design with a 300 mm working stroke. Built with an integrated recirculating ball bearing guide and a 100% duty cycle, this component operates at a maximum speed of 1.5 m/s, a maximum acceleration of 15 m/s², and a repetition accuracy of ±0.1 mm, supporting either stepper or servo motors with position sensing via proximity switches and inductive sensors. It conforms to VDMA24364 Zone III LABS conformity, carries an IP40 degree of protection, and meets ISO 14644-1 Class 7 cleanroom suitability alongside reduced Cu/Zn/Ni suitability for Li-ion battery production. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8062787
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8062787.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Drive pinion eﬀective diameter: 33.42 mm
Working stroke: 300 mm
Size: 80
Stroke reserve: 0 mm
Toothed belt pitch: 3 mm
Mounting position: Any
Guide: Recirculating ball bearing
Structural design: Electromechanical linear axis | With toothed belt
Motor type: Stepper motor | Servo motor
Position sensing: Via proximity switch | For inductive sensors
Max. acceleration: 15 m/s²
Max. speed: 1.5 m/s
Repetition accuracy: ±0.1 mm
Duty cycle: 100%
LABS (PWIS) conformity: VDMA24364 Zone III
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 7 according to ISO 14644-1
Storage temperature: -20 °C...60 °C
Degree of protection: IP40
Ambient temperature: 0 °C...50 °C
Impact energy in the end positions: 0.75 mJ
Note on the impact energy in the end positions: At maximum speed of the reference run of 0.01 m/s
2nd moment of area Iy: 1370000 mm⁴
2nd moment of area Iz: 1660000 mm⁴
Max. driving torque: 4.178 Nm
Max. force Fy: 5543 N
Max. force Fz: 5543 N
Max. force Fy total axis: 900 N
Max. force Fz total axis: 2700 N
