Festo
8062789

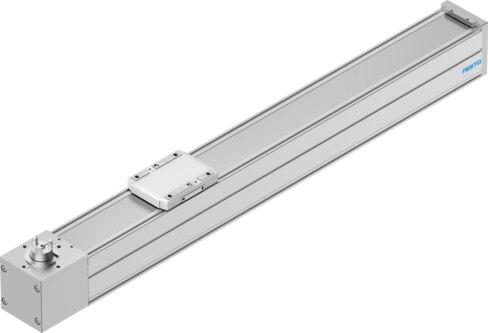

Belt driven linear actuator ELGC-TB-KF-80-600
The Festo 8062789 is an electromechanical linear axis with a toothed belt featuring a size 80 frame, a 33.42 mm drive pinion effective diameter, and a 600 mm working stroke with 0 mm stroke reserve and a 3 mm toothed belt pitch. Incorporating a recirculating ball bearing guide and compatible with stepper or servo motors via any mounting position, this component achieves a max speed of 1.5 m/s, a max acceleration of 15 m/s², and a repetition accuracy of ±0.1 mm during a 100% duty cycle. It provides position sensing via proximity switches or inductive sensors, operates in ambient temperatures from 0 °C to 50 °C with an IP40 degree of protection, and meets ISO 14644-1 Class 7 cleanroom, VDMA24364 Zone III LABS conformity, and reduced Cu/Zn/Ni battery production suitability standards. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8062789
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8062789.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 33.42 mm
- Working stroke
- 600 mm
- Size
- 80
- Stroke reserve
- 0 mm
- Toothed belt pitch
- 3 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With toothed belt
- Motor type
- Stepper motor | Servo motor
- Position sensing
- Via proximity switch | For inductive sensors
- Max. acceleration
- 15 m/s²
- Max. speed
- 1.5 m/s
- Repetition accuracy
- ±0.1 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 7 according to ISO 14644-1
- Storage temperature
- -20 °C...60 °C
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...50 °C
- Impact energy in the end positions
- 0.75 mJ
- Note on the impact energy in the end positions
- At maximum speed of the reference run of 0.01 m/s
- 2nd moment of area Iy
- 1370000 mm⁴
- 2nd moment of area Iz
- 1660000 mm⁴
- Max. driving torque
- 4.178 Nm
- Max. force Fy
- 5543 N
- Max. force Fz
- 5543 N
- Max. force Fy total axis
- 900 N
- Max. force Fz total axis
- 2700 N
