Name: Festo 8062791 Belt driven linear actuator ELGC-TB-KF-80-1000
Brand: Festo

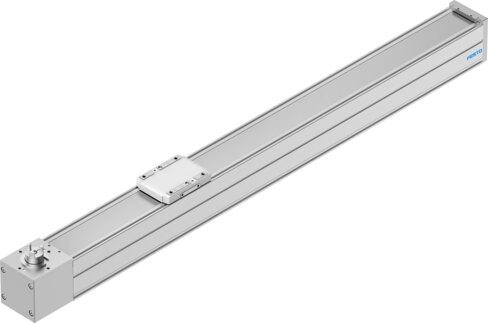

Belt driven linear actuator ELGC-TB-KF-80-1000

The Festo 8062791 is an electromechanical linear axis featuring a toothed belt with a 3 mm pitch, a size 80 frame, a 33.42 mm drive pinion effective diameter, and a 1000 mm working stroke incorporating a recirculating ball bearing guide. This component supports any mounting position, accommodates stepper or servo motors, allows position sensing via proximity switches or inductive sensors, and achieves a maximum acceleration of 15 m/s², a maximum speed of 1.5 m/s, and a repetition accuracy of ±0.1 mm at a 100% duty cycle. Rated to IP40 with an ambient operating temperature range of 0 °C to 50 °C and storage between -20 °C and 60 °C, the unit conforms to VDMA24364 Zone III LABS, meets ISO 14644-1 Class 7 cleanroom standards, and is suited for Li-ion battery production with reduced Cu/Zn/Ni values (F1a). Submit part number 8062791, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8062791
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8062791.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Drive pinion eﬀective diameter: 33.42 mm
Working stroke: 1000 mm
Size: 80
Stroke reserve: 0 mm
Toothed belt pitch: 3 mm
Mounting position: Any
Guide: Recirculating ball bearing
Structural design: Electromechanical linear axis | With toothed belt
Motor type: Stepper motor | Servo motor
Position sensing: Via proximity switch | For inductive sensors
Max. acceleration: 15 m/s²
Max. speed: 1.5 m/s
Repetition accuracy: ±0.1 mm
Duty cycle: 100%
LABS (PWIS) conformity: VDMA24364 Zone III
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 7 according to ISO 14644-1
Storage temperature: -20 °C...60 °C
Degree of protection: IP40
Ambient temperature: 0 °C...50 °C
Impact energy in the end positions: 0.75 mJ
Note on the impact energy in the end positions: At maximum speed of the reference run of 0.01 m/s
2nd moment of area Iy: 1370000 mm⁴
2nd moment of area Iz: 1660000 mm⁴
Max. driving torque: 4.178 Nm
Max. force Fy: 5543 N
Max. force Fz: 5543 N
Max. force Fy total axis: 900 N
Max. force Fz total axis: 2700 N

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8062791. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
