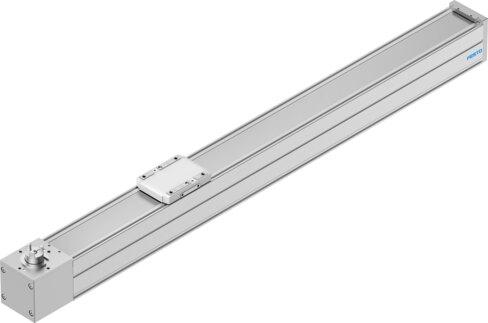

Reference imageConfirm configuration by manufacturer part number.
Festo
8062794
Belt driven linear actuator ELGC-TB-KF-80-1800
The Festo 8062794 is an electromechanical linear axis featuring a toothed belt with a 3 mm pitch, an 80 size, a 33.42 mm drive pinion effective diameter, and a 1800 mm working stroke with 0 mm stroke reserve. Guided by a recirculating ball bearing and driven by either a stepper or servo motor, this IP40-rated component achieves a max speed of 1.5 m/s, a max acceleration of 15 m/s², and a repetition accuracy of ±0.1 mm with a 100% duty cycle in any mounting position. Position sensing is accomplished via proximity switch or for inductive sensors, while its construction meets VDMA24364 Zone III LABS conformity, ISO 14644-1 Class 7 cleanroom standards, and reduced Cu/Zn/Ni values (F1a) for Li-ion battery production suitability within ambient temperatures of 0 °C to 50 °C and storage temperatures of -20 °C to 60 °C. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8062794
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8062794.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 33.42 mm
- Working stroke
- 1800 mm
- Size
- 80
- Stroke reserve
- 0 mm
- Toothed belt pitch
- 3 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With toothed belt
- Motor type
- Stepper motor | Servo motor
- Position sensing
- Via proximity switch | For inductive sensors
- Max. acceleration
- 15 m/s²
- Max. speed
- 1.5 m/s
- Repetition accuracy
- ±0.1 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 7 according to ISO 14644-1
- Storage temperature
- -20 °C...60 °C
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...50 °C
- Impact energy in the end positions
- 0.75 mJ
- Note on the impact energy in the end positions
- At maximum speed of the reference run of 0.01 m/s
- 2nd moment of area Iy
- 1370000 mm⁴
- 2nd moment of area Iz
- 1660000 mm⁴
- Max. driving torque
- 4.178 Nm
- Max. force Fy
- 5543 N
- Max. force Fz
- 5543 N
- Max. force Fy total axis
- 900 N
- Max. force Fz total axis
- 2700 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8062794. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
