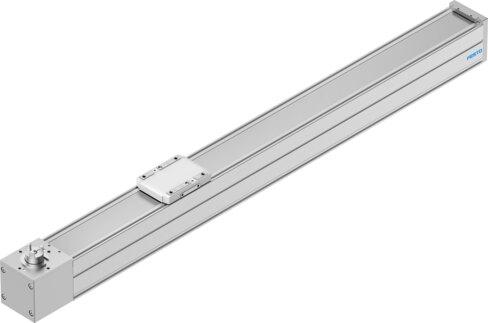

Reference imageConfirm configuration by manufacturer part number.
Festo
8062795
Belt driven linear actuator ELGC-TB-KF-80-2000
The Festo 8062795 is an electromechanical linear axis featuring a toothed belt drive with a 33.42 mm drive pinion effective diameter, a 3 mm toothed belt pitch, and an 80 size designation. This component provides a 2000 mm working stroke with a 0 mm stroke reserve, integrating a recirculating ball bearing guide and supporting a 100% duty cycle at a maximum acceleration of 15 m/s² and a maximum speed of 1.5 m/s. Designed with IP40 protection for operation in ambient temperatures from 0 °C to 50 °C, it achieves ISO Class 7 cleanroom compatibility and VDMA24364 Zone III LABS conformity with reduced Cu/Zn/Ni values for Li-ion battery production suitability. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8062795
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8062795.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 33.42 mm
- Working stroke
- 2000 mm
- Size
- 80
- Stroke reserve
- 0 mm
- Toothed belt pitch
- 3 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With toothed belt
- Motor type
- Stepper motor | Servo motor
- Position sensing
- Via proximity switch | For inductive sensors
- Max. acceleration
- 15 m/s²
- Max. speed
- 1.5 m/s
- Repetition accuracy
- ±0.1 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 7 according to ISO 14644-1
- Storage temperature
- -20 °C...60 °C
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...50 °C
- Impact energy in the end positions
- 0.75 mJ
- Note on the impact energy in the end positions
- At maximum speed of the reference run of 0.01 m/s
- 2nd moment of area Iy
- 1370000 mm⁴
- 2nd moment of area Iz
- 1660000 mm⁴
- Max. driving torque
- 4.178 Nm
- Max. force Fy
- 5543 N
- Max. force Fz
- 5543 N
- Max. force Fy total axis
- 900 N
- Max. force Fz total axis
- 2700 N
