Festo
8062802

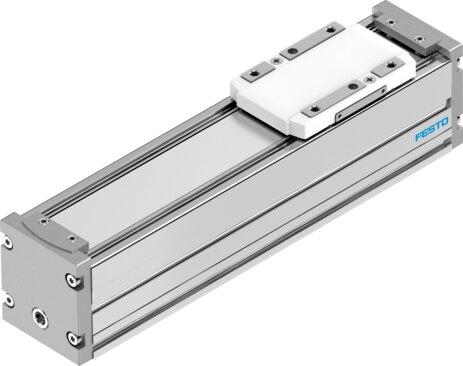

Guide axis ELFC-KF-45-100
The Festo 8062802 is an industrial guide featuring a structural design with a recirculating ball bearing guide and a 100 mm working stroke in size 45. It supports any mounting position, position sensing via proximity switches or inductive sensors, a max acceleration of 15 m/s², a max speed of 1.5 m/s, and a 100% duty cycle, with max forces of 880 N for Fy and Fz, and a max torque Mx of 5.5 Nm. Rated IP40 with a 0 °C to 50 °C ambient temperature range, it exhibits 2nd moments of area Iy of 140000 mm⁴ and Iz of 170000 mm⁴, CRC 0 corrosion resistance, VDMA24364 Zone III LABS conformity, ISO 14644-1 Class 7 cleanroom suitability, and reduced Cu/Zn/Ni values suitable for Li-ion battery production. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8062802
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8062802.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 100 mm
- Size
- 45
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Position sensing
- Via proximity switch | For inductive sensors
- Max. acceleration
- 15 m/s²
- Max. speed
- 1.5 m/s
- Duty cycle
- 100%
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 7 according to ISO 14644-1
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...50 °C
- 2nd moment of area Iy
- 140000 mm⁴
- 2nd moment of area Iz
- 170000 mm⁴
- Max. force Fy
- 880 N
- Max. force Fz
- 880 N
- Max. torque Mx
- 5.5 Nm
- Max. torque My
- 4.7 Nm
- Max. torque Mz
- 4.7 Nm
- Max. force Fy total axis
- 300 N
- Max. force Fz total axis
- 600 N
- Max. moment Mx total axis
- 5.5 Nm
- Max. moment My total axis
- 4.7 Nm
- Max. moment Mz total axis
- 4.7 Nm
- Torsion moment of inertia It
- 8500 mm⁴
- Displacement force
- 4.5 N
- Reference service life
- 5000 km
- Maintenance interval
- Lifetime lubrication
