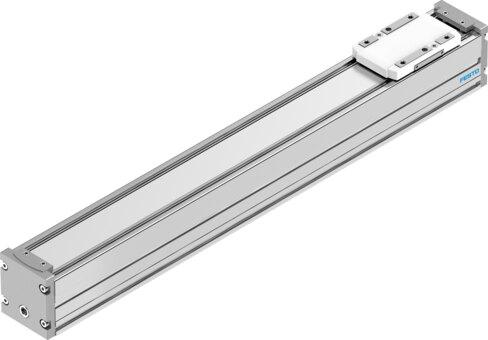

Name: Festo 8062804 Guide axis ELFC-KF-45-300
Brand: Festo

Guide axis ELFC-KF-45-300

The Festo industrial component, part number 8062804, features a 300 mm working stroke, size 45 structural design, and an integrated recirculating ball bearing guide supporting any mounting position. It achieves a maximum speed of 1.5 m/s, maximum acceleration of 15 m/s², and a 100% duty cycle with position sensing via proximity switches or inductive sensors. Built with IP40 protection, CRC 0 corrosion resistance, and ISO 14644-1 Class 7 cleanroom suitability, the unit withstands a max torque of 5.5 Nm, max forces Fy and Fz of 880 N, and moments of area Iy of 140000 mm⁴ and Iz of 170000 mm⁴ within an ambient temperature range of 0 °C to 50 °C. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8062804
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8062804.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Working stroke: 300 mm
Size: 45
Mounting position: Any
Guide: Recirculating ball bearing
Structural design: Guide
Position sensing: Via proximity switch | For inductive sensors
Max. acceleration: 15 m/s²
Max. speed: 1.5 m/s
Duty cycle: 100%
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 7 according to ISO 14644-1
Degree of protection: IP40
Ambient temperature: 0 °C...50 °C
2nd moment of area Iy: 140000 mm⁴
2nd moment of area Iz: 170000 mm⁴
Max. force Fy: 880 N
Max. force Fz: 880 N
Max. torque Mx: 5.5 Nm
Max. torque My: 4.7 Nm
Max. torque Mz: 4.7 Nm
Max. force Fy total axis: 300 N
Max. force Fz total axis: 600 N
Max. moment Mx total axis: 5.5 Nm
Max. moment My total axis: 4.7 Nm
Max. moment Mz total axis: 4.7 Nm
Torsion moment of inertia It: 8500 mm⁴
Displacement force: 4.5 N
Reference service life: 5000 km
Maintenance interval: Lifetime lubrication

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8062804. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
