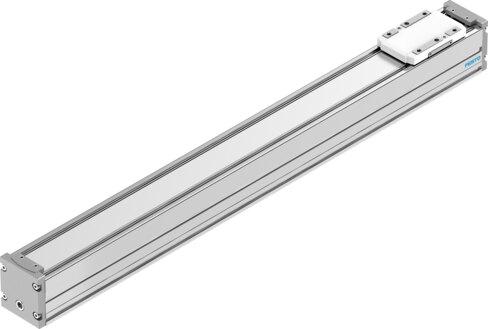

Name: Festo 8062805 Guide axis ELFC-KF-45-400
Brand: Festo

Guide axis ELFC-KF-45-400

The Festo 8062805 is an industrial guide featuring a 400 mm working stroke, size 45 dimensions, and a recirculating ball bearing guide supporting a maximum speed of 1.5 m/s and acceleration up to 15 m/s². It operates at a 100% duty cycle in ambient temperatures ranging from 0 °C to 50 °C, offering position sensing via proximity switches and inductive sensors, IP40 protection, and ISO 14644-1 Class 7 cleanroom suitability. This component provides maximum forces Fy and Fz of 880 N, a maximum torque Mx of 5.5 Nm, 2nd moments of area Iy of 140000 mm⁴ and Iz of 170000 mm⁴, VDMA24364 Zone III LABS conformity, and compatibility with Li-ion battery production under reduced Cu/Zn/Ni values (F1a). Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8062805
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8062805.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Working stroke: 400 mm
Size: 45
Mounting position: Any
Guide: Recirculating ball bearing
Structural design: Guide
Position sensing: Via proximity switch | For inductive sensors
Max. acceleration: 15 m/s²
Max. speed: 1.5 m/s
Duty cycle: 100%
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 7 according to ISO 14644-1
Degree of protection: IP40
Ambient temperature: 0 °C...50 °C
2nd moment of area Iy: 140000 mm⁴
2nd moment of area Iz: 170000 mm⁴
Max. force Fy: 880 N
Max. force Fz: 880 N
Max. torque Mx: 5.5 Nm
Max. torque My: 4.7 Nm
Max. torque Mz: 4.7 Nm
Max. force Fy total axis: 300 N
Max. force Fz total axis: 600 N
Max. moment Mx total axis: 5.5 Nm
Max. moment My total axis: 4.7 Nm
Max. moment Mz total axis: 4.7 Nm
Torsion moment of inertia It: 8500 mm⁴
Displacement force: 4.5 N
Reference service life: 5000 km
Maintenance interval: Lifetime lubrication

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8062805. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
