Festo
8062807

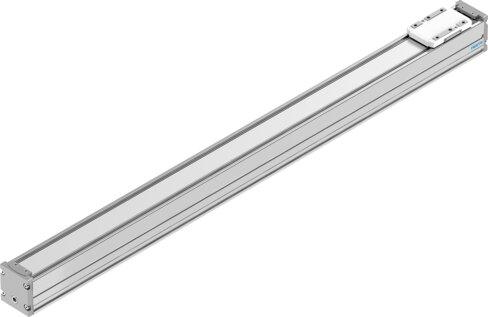

Guide axis ELFC-KF-45-600
The Festo 8062807 industrial component is a guide featuring a 600 mm working stroke, size 45 dimensions, and a recirculating ball bearing guide supporting any mounting position. It achieves a maximum speed of 1.5 m/s, a maximum acceleration of 15 m/s², and a 100% duty cycle while withstanding a maximum force of 880 N for both Fy and Iz loads and a max torque Mx of 5.5 Nm. Engineered for cleanroom Class 7 operations and compatible with Li-ion battery production under reduced Cu/Zn/Ni values, this unit includes position sensing via proximity switches or inductive sensors and offers IP40 protection within an ambient temperature range of 0 °C to 50 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8062807
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8062807.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 600 mm
- Size
- 45
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Position sensing
- Via proximity switch | For inductive sensors
- Max. acceleration
- 15 m/s²
- Max. speed
- 1.5 m/s
- Duty cycle
- 100%
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 7 according to ISO 14644-1
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...50 °C
- 2nd moment of area Iy
- 140000 mm⁴
- 2nd moment of area Iz
- 170000 mm⁴
- Max. force Fy
- 880 N
- Max. force Fz
- 880 N
- Max. torque Mx
- 5.5 Nm
- Max. torque My
- 4.7 Nm
- Max. torque Mz
- 4.7 Nm
- Max. force Fy total axis
- 300 N
- Max. force Fz total axis
- 600 N
- Max. moment Mx total axis
- 5.5 Nm
- Max. moment My total axis
- 4.7 Nm
- Max. moment Mz total axis
- 4.7 Nm
- Torsion moment of inertia It
- 8500 mm⁴
- Displacement force
- 4.5 N
- Reference service life
- 5000 km
- Maintenance interval
- Lifetime lubrication
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8062807. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
