Festo
8062814

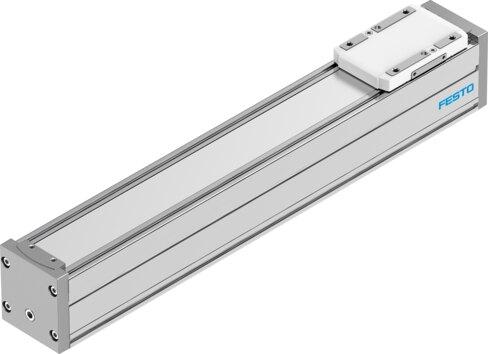

Guide axis ELFC-KF-60-300
This Festo industrial component, part number 8062814, features a size 60 structural guide design with a 300 mm working stroke and an integrated recirculating ball bearing guide supporting any mounting position. It achieves a maximum speed of 1.5 m/s, a maximum acceleration of 15 m/s², a 100% duty cycle, and position sensing via proximity switch or for inductive sensors, while rated for an ambient temperature range of 0 °C to 50 °C with IP40 protection. The unit exhibits a 2nd moment of area Iy of 441000 mm⁴, a 2nd moment of area Iz of 542000 mm⁴, maximum forces Fy and Fz of 3641 N each, and a maximum torque Mx of 29.1 Nm under CRC 0, VDMA24364 Zone III LABS conformity, ISO 14644-1 Class 7 cleanroom suitability, and reduced Cu/Zn/Ni values (F1a) for Li-ion battery production. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8062814
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8062814.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 300 mm
- Size
- 60
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Position sensing
- Via proximity switch | For inductive sensors
- Max. acceleration
- 15 m/s²
- Max. speed
- 1.5 m/s
- Duty cycle
- 100%
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 7 according to ISO 14644-1
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...50 °C
- 2nd moment of area Iy
- 441000 mm⁴
- 2nd moment of area Iz
- 542000 mm⁴
- Max. force Fy
- 3641 N
- Max. force Fz
- 3641 N
- Max. torque Mx
- 29.1 Nm
- Max. torque My
- 31.8 Nm
- Max. torque Mz
- 31.8 Nm
- Max. force Fy total axis
- 600 N
- Max. force Fz total axis
- 1800 N
- Max. moment Mx total axis
- 29.1 Nm
- Max. moment My total axis
- 31.8 Nm
- Max. moment Mz total axis
- 31.8 Nm
- Torsion moment of inertia It
- 29800 mm⁴
- Displacement force
- 6.75 N
- Reference service life
- 5000 km
- Maintenance interval
- Lifetime lubrication
