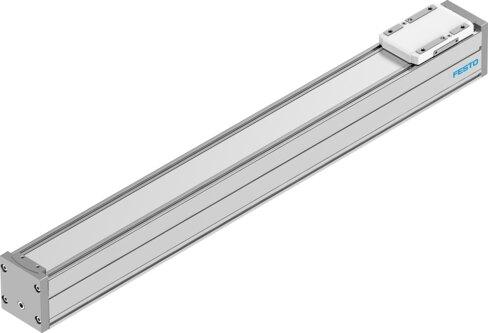

Reference imageConfirm configuration by manufacturer part number.
Festo
8062816
Guide axis ELFC-KF-60-500
This Festo industrial component, part number 8062816, is a structural guide featuring a size 60 format, a 500 mm working stroke, and a recirculating ball bearing guide supporting any mounting position. It achieves a max speed of 1.5 m/s, a max acceleration of 15 m/s², a 100% duty cycle, and position sensing via proximity switch or for inductive sensors, with a 0 °C to 50 °C ambient temperature range and IP40 degree of protection. The unit delivers max forces Fy and Fz of 3641 N, a max torque Mx of 29.1 Nm, 2nd moments of area Iy of 441000 mm⁴ and Iz of 542000 mm⁴, and maintains CRC 0 corrosion resistance, VDMA24364 Zone III LABS conformity, ISO 14644-1 class 7 cleanroom suitability, and F1a Li-ion battery production suitability. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8062816
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8062816.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 500 mm
- Size
- 60
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Position sensing
- Via proximity switch | For inductive sensors
- Max. acceleration
- 15 m/s²
- Max. speed
- 1.5 m/s
- Duty cycle
- 100%
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 7 according to ISO 14644-1
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...50 °C
- 2nd moment of area Iy
- 441000 mm⁴
- 2nd moment of area Iz
- 542000 mm⁴
- Max. force Fy
- 3641 N
- Max. force Fz
- 3641 N
- Max. torque Mx
- 29.1 Nm
- Max. torque My
- 31.8 Nm
- Max. torque Mz
- 31.8 Nm
- Max. force Fy total axis
- 600 N
- Max. force Fz total axis
- 1800 N
- Max. moment Mx total axis
- 29.1 Nm
- Max. moment My total axis
- 31.8 Nm
- Max. moment Mz total axis
- 31.8 Nm
- Torsion moment of inertia It
- 29800 mm⁴
- Displacement force
- 6.75 N
- Reference service life
- 5000 km
- Maintenance interval
- Lifetime lubrication
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8062816. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
