Festo
8063456

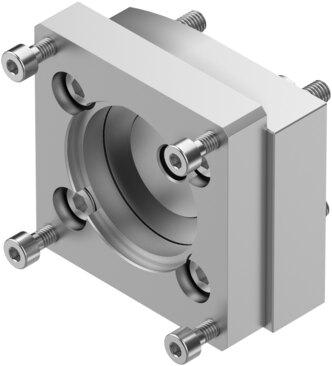

Axial kit EAMM-A-L38-58AA
The Festo industrial component, part number 8063456, features a nominal length of 25.9 mm, a product weight of 267 g, and a mass moment of inertia of 3.2 kgmm². This unit accommodates any mounting position, a maximum rotational speed of 8000 rpm, a transferable torque of 4.4 Nm, actuator interface code L38, and motor interface code 58AA. Operating parameters include an ambient temperature range of -10 °C to 60 °C, storage temperatures between -25 °C and 60 °C, relative air humidity from 0 to 95%, an IP40 degree of protection, VDMA24364-B2-L LABS conformity, and RoHS compliant materials. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8063456
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8063456.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 25.9 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 3.2 kgmm²
- Transferable torque
- 4.4 Nm
- Product weight
- 267 g
- Interface code, actuator
- L38
- Interface code, motor in
- 58AA
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8063456. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
