Festo
8063457

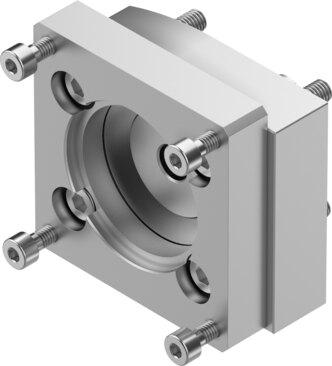

Axial kit EAMM-A-L38-57AA
The Festo industrial component, part number 8063457, is engineered with a nominal length of 26.9 mm, a mass moment of inertia of 3.2 kgmm², and a product weight of 281 g. Featuring an actuator interface code of L38 and a motor input interface code of 57AA, this RoHS compliant unit delivers a transferable torque of 4.4 Nm at a maximum rotational speed of 8000 rpm in any mounting position. It operates within an ambient temperature range of -10 °C to 60 °C, a storage temperature range of -25 °C to 60 °C, relative air humidity from 0 to 95%, and provides an IP40 degree of protection alongside VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8063457
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8063457.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 26.9 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 3.2 kgmm²
- Transferable torque
- 4.4 Nm
- Product weight
- 281 g
- Interface code, actuator
- L38
- Interface code, motor in
- 57AA
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8063457. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
